# Endpoints
Which API endpoints consume or transmit personal data — the categories they carry, the regulations that apply, and how sensitive the payload is.
Entities tell you what your code *stores*. This view tells you what it *moves*: which of your API endpoints take personal data in, which hand it back out, and what kind of data that is. It answers the question a privacy review usually asks first — *which of our endpoints are in scope for this regulation?*

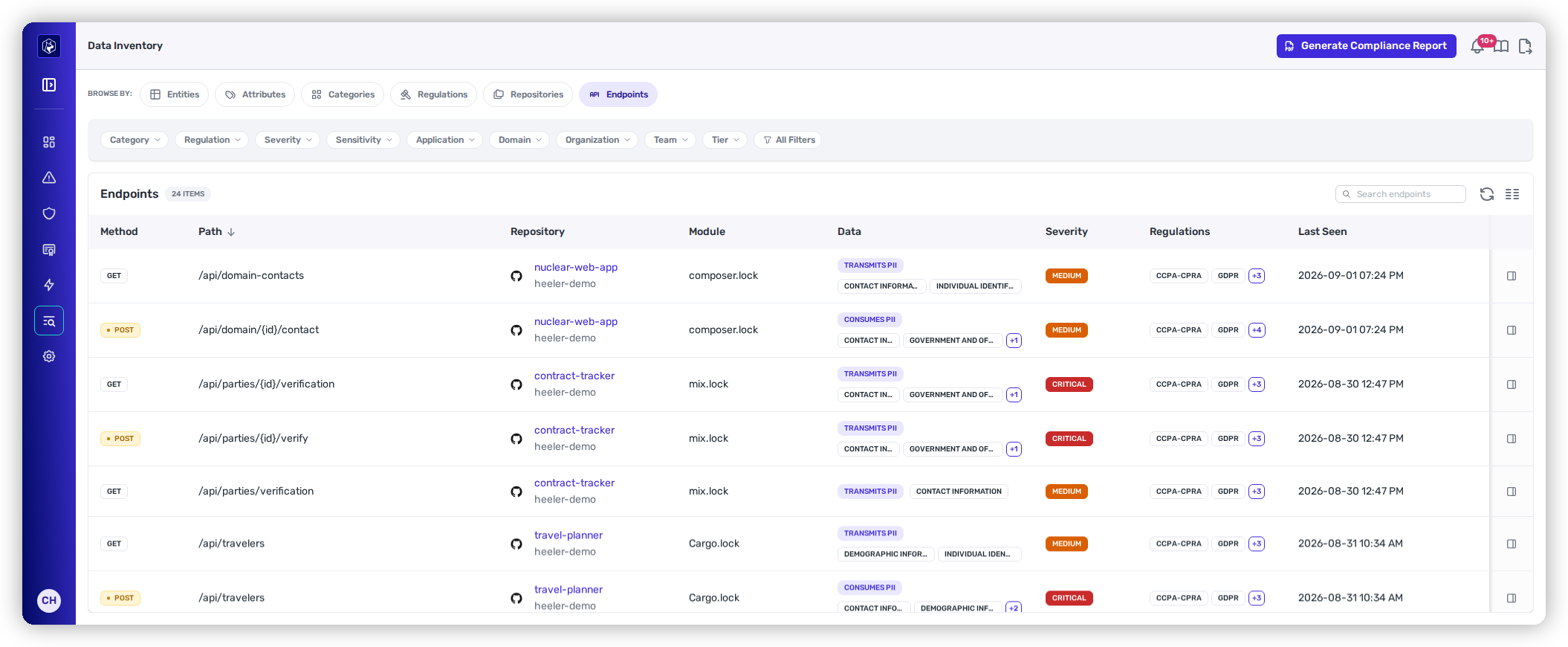

Endpoints — every discovered endpoint, classified by the data that moves through it.
The classification is read from the interface schemas your code already declares — OpenAPI, GraphQL, protobuf, and JSON Schema — and joined to the same taxonomy the rest of the inventory uses. Nothing is tagged by hand, and an endpoint that carries no classified data carries no tags.
## Columns
| Column | What it shows |
| --------------- | ------------------------------------------------------------------------------------------------------------ |
| **Method** | The HTTP method, as a badge. |
| **Path** | The endpoint's route, with path parameters shown as declared — for example `/api/parties/{id}/verification`. |
| **Repository** | The repository and organization the endpoint was found in. Links to it in the Catalog. |
| **Module** | The module within that repository. |
| **Data** | A **Consumes PII** or **Transmits PII** badge, followed by the categories carried, as badges. |
| **Severity** | The highest severity among everything the endpoint carries. |
| **Regulations** | Every regulation that treats the data as in scope. |
## Consumes and transmits are separate
**Consumes PII** means personal data arrives in the request. **Transmits PII** means it leaves in the response. An endpoint can do both, one, or neither, and the distinction usually decides what you do about it — an endpoint that returns personal data is an exposure question, while one that accepts it is a collection and retention question.
Both are read from the direction of the schema that produced them, so a request body and a response body are never conflated.
## Severity is a ceiling
**Severity** is the maximum across everything the endpoint carries, not an average. An endpoint showing **Critical** may carry one critical attribute alongside several low ones. Read it with the **Data** badges to tell what is driving it.
## Open an endpoint
Selecting a row opens the endpoint's detail, where its data classification sits beside its security posture.

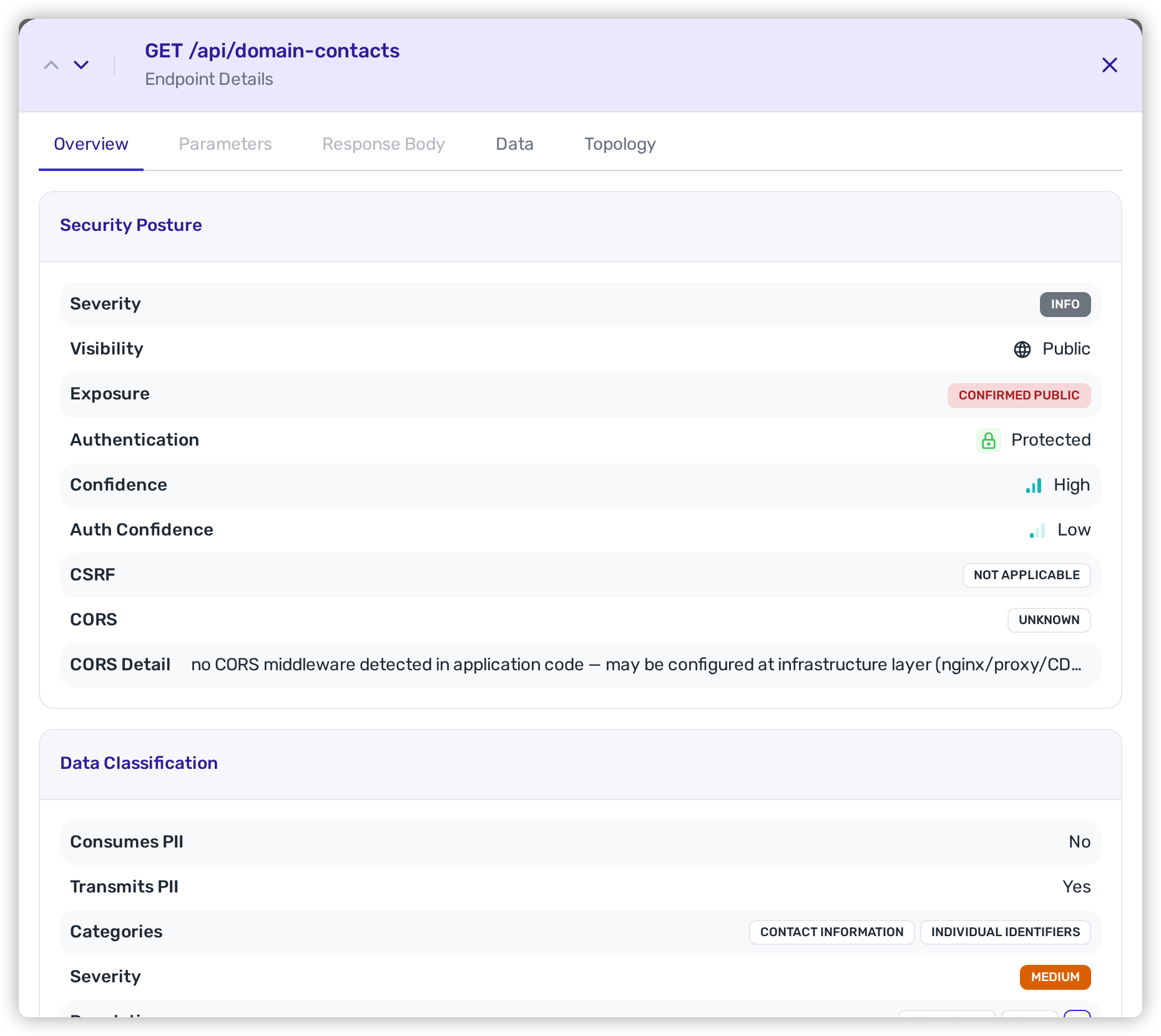

Endpoint details — data classification next to visibility and authentication.
That pairing is the point. **Data Classification** tells you what moves through the endpoint; **Security Posture** tells you whether it is reachable and whether anything guards it. An endpoint carrying critical personal data that is also **Public** and **Unprotected** is a different problem from the same payload behind authentication, and the two facts are on one screen rather than in two tools.
**Detection Context** below them records how the endpoint was found — the source it was read from, and whether it came from a published contract or from the code itself.
## Filtering
The same chips apply as everywhere else in the inventory — **Category**, **Regulation**, **Severity**, **Application**, **Organization**, **Team**, and **Tier** — plus **All Filters** and a search box.
Two combinations do most of the work:
* Filter by **Regulation** to get the endpoint scope list for an audit.
* Filter by **Team** to hand each team the endpoints it owns that touch regulated data.
## Export and report
**Generate Compliance Report** produces a point-in-time document for the current scope — see [Compliance Reports](/mrecEO40m5D6bt7Pq5pE/standards-and-compliance/compliance-reports.md). The listing also exports to CSV, and the same fields are available on the endpoints API, so "which endpoints handle regulated data" can be a scheduled query rather than a manual review.
## Related
* [Entities](/mrecEO40m5D6bt7Pq5pE/catalog/data-inventory/entities.md) — the data your code persists, rather than moves.
* [Endpoints](/mrecEO40m5D6bt7Pq5pE/catalog/endpoints.md) — how endpoints are discovered and assessed in the Catalog.
* [Regulations](/mrecEO40m5D6bt7Pq5pE/catalog/data-inventory/regulations.md) — which regulations apply across the whole inventory.
---
