# AWS Event Collection

Add near-real-time AWS change detection by streaming CloudTrail events to Heeler through an SQS queue.

Event collection gives Heeler **near-real-time** updates when meaningful things change in your AWS environment, between the regular inventory polls. Heeler harvests **CloudTrail** events delivered to an **SQS queue** it can read.

## Choose an implementation

Both options deliver the same data — the trade-off is **cost vs. latency**:

|                 | Option 1 · S3 → SQS (recommended)    | Option 2 · CloudWatch Logs → SQS                     |
| --------------- | ------------------------------------ | ---------------------------------------------------- |
| **Flow**        | CloudTrail → S3 → SNS → SQS → Heeler | CloudTrail → CloudWatch Logs → Lambda → SQS → Heeler |
| **Cost**        | Lower — can be \~1/100th of Option 2 | Higher — per-event CloudWatch ingestion + Lambda     |
| **Latency**     | \~5–10 min (CloudTrail's S3 cadence) | Under 60 s                                           |
| **Choose when** | **Default** — most customers         | Only if sub-minute latency is a hard requirement     |

## Shared prerequisite

Both options need an **organization-wide CloudTrail** (most orgs already have one), configured for **all accounts**, **multi-region**, and **all management events**. It must deliver to an **S3 bucket in the payer/org-management account** (Option 1) or have **CloudWatch Logs enabled** (Option 2).

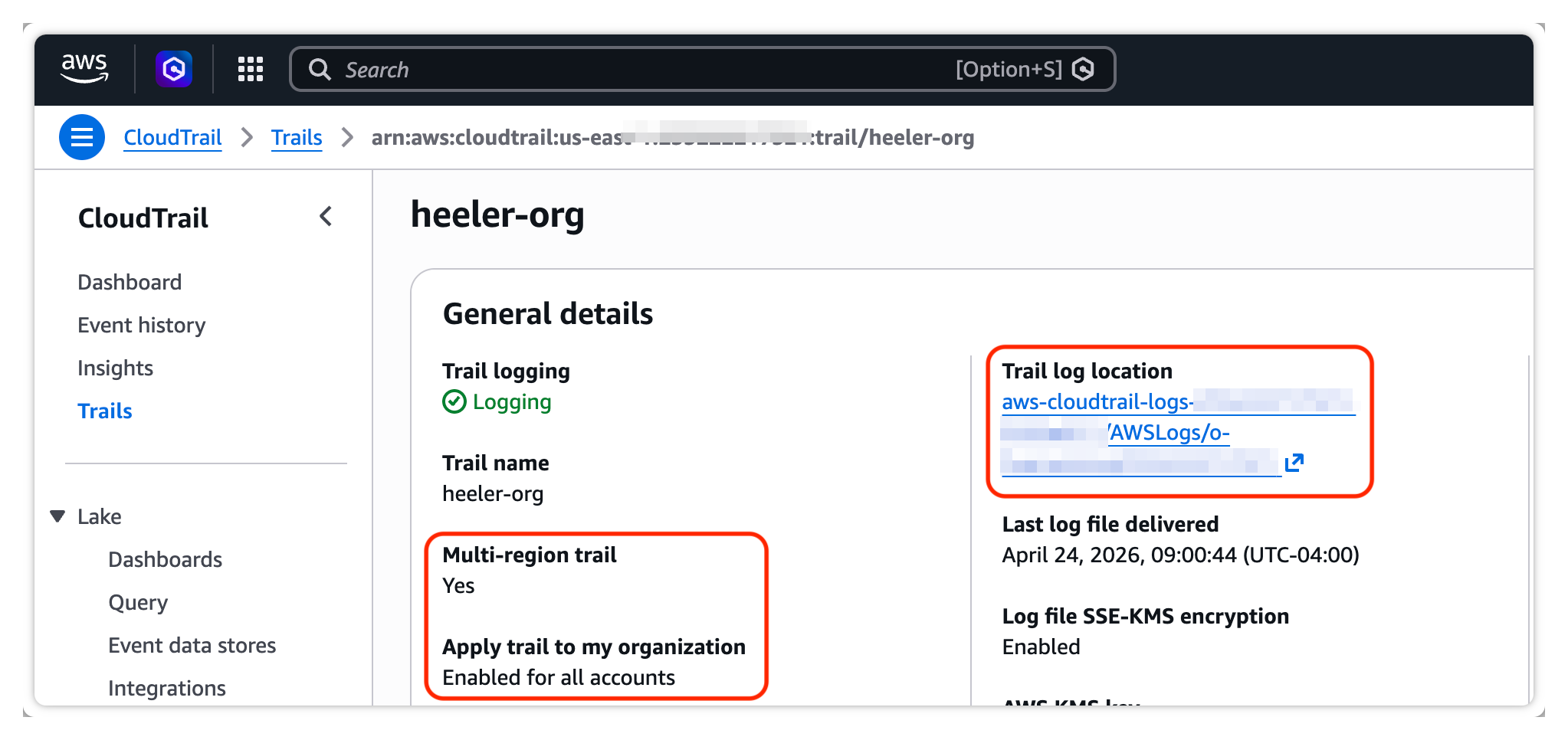

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-42e80ade40750f575b42ddbce4c8255656f0c874%2Fcc-cloud-awsevent-01.png?alt=media" alt="The AWS CloudTrail trail details page showing a multi-region trail applied to all accounts in the organization and its S3 trail log location."><figcaption><p>Confirm the trail is multi-region and applied to the whole organization.</p></figcaption></figure>

## Before you start (per option)

* **Option 1 (S3 → SQS)** — note the **S3 bucket name** the trail delivers to, and, if that bucket is encrypted with a customer-managed KMS key (SSE-KMS, not the default SSE-S3), the **KMS key ARN**. You'll pass both to the module.

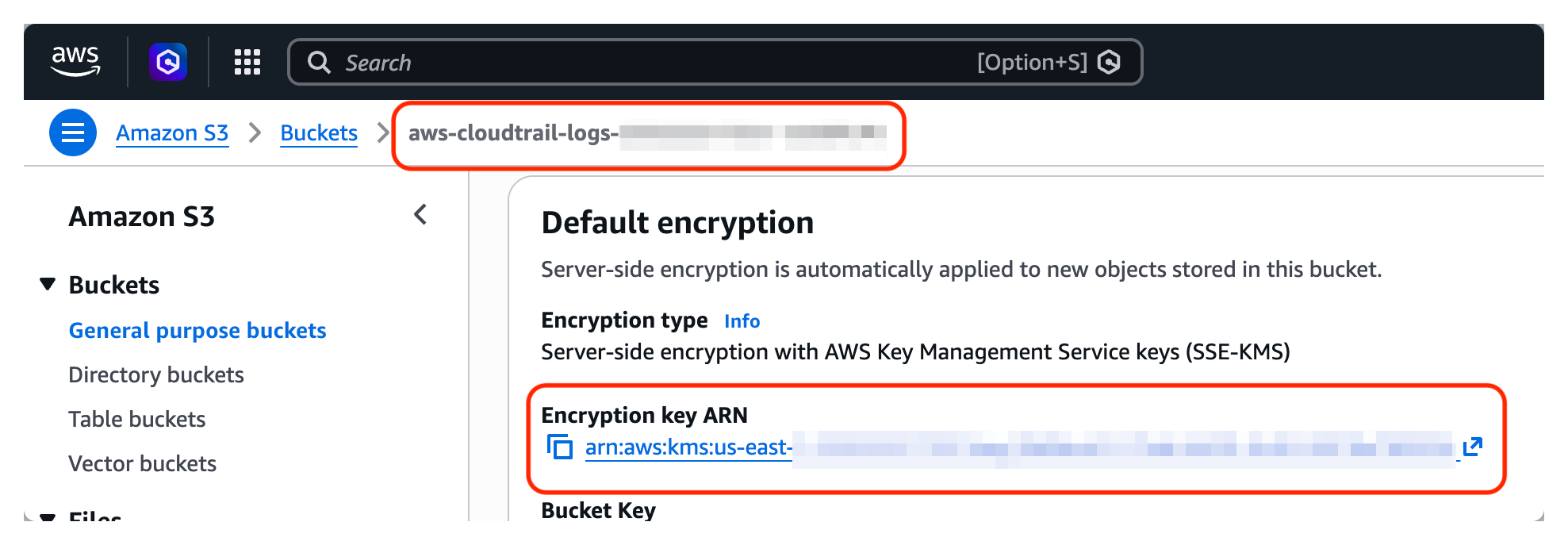

  <figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-1f530bbe8157fb9355be6c75ffd9282e1209f8f1%2Fcc-cloud-awsevent-02.png?alt=media" alt="The AWS S3 bucket default-encryption panel showing the CloudTrail bucket name and its SSE-KMS encryption key ARN."><figcaption><p>Grab the CloudTrail bucket name and, if it uses a customer-managed key, the encryption key ARN.</p></figcaption></figure>
* **Option 2 (CloudWatch Logs → SQS)** — the trail must have **CloudWatch Logs enabled**. If you enable it now, set the new Log Group's retention to **1 day**: Heeler ingests events in near real time and doesn't need them retained, so short retention keeps costs down.

## Deploy the resources (Terraform)

Download the Event Collection Terraform module for your chosen option and apply it in the **payer/org-management account**. It provisions the queue and the cross-account IAM role Heeler assumes to read it:

**Option 1 — CloudTrail S3 bucket:**

{% file src="/files/rmQPoRBZSwTCza2qiW02" %}

**Option 2 — CloudWatch Logs:**

{% file src="/files/gZGCLhneauG23IpTohnN" %}

* **Option 1** creates (as needed) an **SNS topic** wired to the bucket's `s3:ObjectCreated:*` events, an **SQS queue** + **DLQ** (captures messages that fail after four delivery attempts), a **KMS key**, and the **IAM role/policy** Heeler assumes to receive messages and fetch the referenced CloudTrail objects. When the bucket uses a customer-managed KMS key, it also adds a **KMS grant** so the harvest role can decrypt retrieved objects.
* **Option 2** creates a **CloudWatch subscription filter** (dropping non-security events), a **Lambda** that forwards to an **SQS queue** + DLQ, a **KMS key**, and the **IAM role/policy** Heeler assumes.

Populate the module inputs in `var.auto.tfvars`:

* **`account_id`** — the payer/org-management account ID.
* **`heeler_external_id`** — a secret you choose, shared between Heeler and the IAM role it assumes.
* **`heeler_security_role_arns`** — the role ARNs Heeler provides.
* **`queues`** — one entry per consumer, pre-filled with a single entry named **`main`**. Leave it as shipped: one queue is the normal shape, and the `main` name keeps queue names stable across module versions. (`message_retention_seconds` bounds how stale a redelivered event can be; `max_receive_count` is how many delivery attempts a message gets before parking on the dead-letter queue.)
* Option 1 also takes **`s3_cloudtrail_bucket_name`**, **`s3_cloudtrail_bucket_kms_key_arn`** (or `"None"` for SSE-S3), and **`sns_s3_event_notification_name`** (an existing SNS topic name, or `"None"` to let the module create one).
* Option 2 also takes **`log_group_name`** — the CloudWatch Log Group receiving the org-wide trail's events.

Then run `terraform init` → `plan` → `apply`. The apply prints three outputs you'll need next:

```
heeler_event_queue_urls       = {
  "main" = "https://sqs.us-east-1.amazonaws.com/…/heeler_event_collection_queue"
}
heeler_event_role_arn         = "arn:aws:iam::…:role/heeler_event_collection_sqs_role"
heeler_event_role_external_id = "…"
```

Use the `main` entry's URL as the Event Queue URL below.

## Upgrading from an earlier module version

If you deployed an earlier version of either module (a single queue, no `queues` variable), the new version upgrades in place — **nothing is destroyed and your queue URL does not change**:

1. Replace the module files with the new download, keeping your existing `var.auto.tfvars` values, and add the `queues` block exactly as it appears in the shipped file — **the entry must be named `main`**. That name keeps your existing queue's name and URL.
2. Run `terraform plan`. The module migrates its internal state addresses automatically — you'll see informational `(moved from …)` lines; no `terraform state mv` commands are needed.
3. Review the plan: expect **no destroys**. Option 2 shows an in-place update to the forwarding Lambda (its code now reads the queue list from configuration); behavior is unchanged for a single queue. A plan proposing to **destroy a queue or KMS key** means the `queues` entry was not named `main` — stop and fix the name before applying.
4. Apply. Your Heeler Event Collection settings need no changes.

## Enable it in Heeler

{% stepper %}
{% step %}

### Open Event Collection settings

Go to **Connections → Cloud Organizations**, click the **⋯** menu on the AWS organization, and choose **Edit Event Collection Settings**.

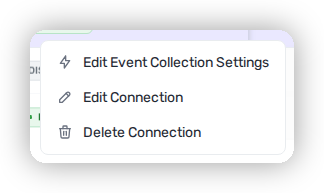

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-21154363973a53f624f709c327a05846b4227782%2Fcc-cloud-awsevent-04.png?alt=media" alt="The Cloud Organizations row overflow menu in Heeler showing Edit Event Collection Settings, Edit Connection, and Delete Connection."><figcaption><p>Open the <strong>⋯</strong> menu on the AWS organization and choose <strong>Edit Event Collection Settings</strong>.</p></figcaption></figure>
{% endstep %}

{% step %}

### Enter the values

Set the **Event Source** to match your implementation (**S3 → SQS** or **CloudWatch Logs → SQS**), then paste:

* **Event Role ARN** → `heeler_event_role_arn`
* **Event Queue URL** → `heeler_event_queue_url`
* **Event Role External Id** → `heeler_event_role_external_id`

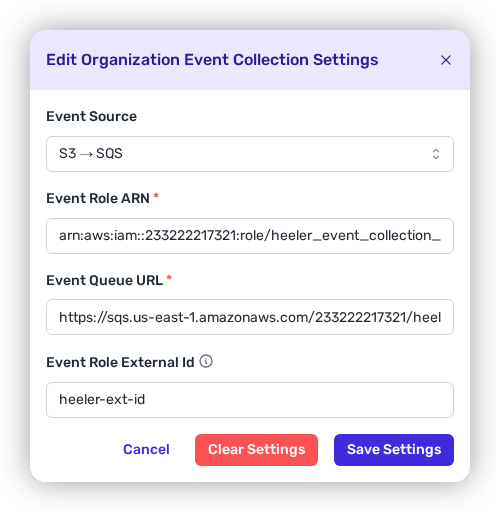

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-f8220d4ebbca76231601142e862ba5e1c7d12774%2Fcc-cloud-awsevent-05.png?alt=media" alt="The Edit Organization Event Collection Settings modal in Heeler with Event Role ARN, Event Queue URL, and Event Role External Id fields."><figcaption><p>Paste the three Terraform outputs into the Event Collection settings.</p></figcaption></figure>

Save.
{% endstep %}

{% step %}

### Confirm

The organization's **Event Collection** column flips to **Enabled**. Initial harvest can take a little while; after that, events flow on the cadence in the table above.

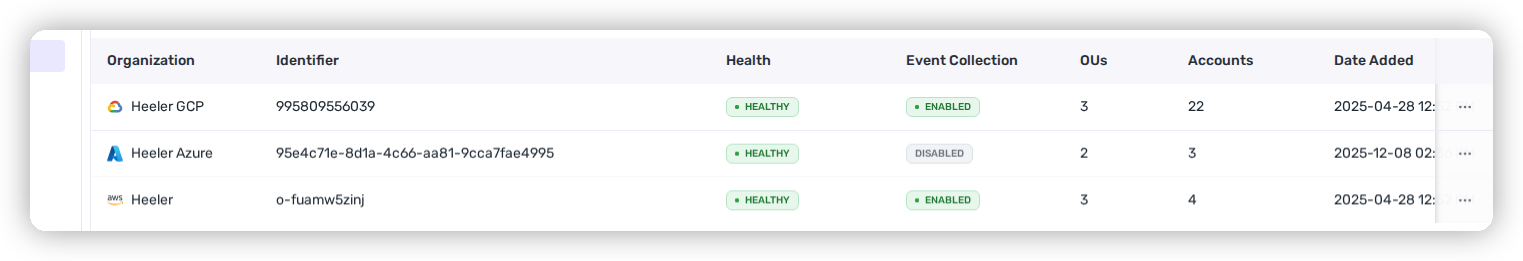

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-ccb3dac56351f640b7b3ab9708eb1c1e28040ba7%2Fcc-cloud-awsevent-06.png?alt=media" alt="The Cloud Organizations list showing the AWS organization with its Event Collection column reading ENABLED."><figcaption><p>The <strong>Event Collection</strong> column reads <strong>Enabled</strong> once settings are saved.</p></figcaption></figure>
{% endstep %}
{% endstepper %}

## Related

* [AWS Supported Services](/mrecEO40m5D6bt7Pq5pE/get-started/cloud-and-runtime/amazon-web-services/aws-supported-services.md) — which services support event collection.
* [Amazon Web Services](/mrecEO40m5D6bt7Pq5pE/get-started/cloud-and-runtime/amazon-web-services.md) — the base connection.
* [Containers](/mrecEO40m5D6bt7Pq5pE/findings/containers.md) — container image scanning reads Amazon ECR push events from this collection.


---
