# Kubernetes (native) Setup

Connect a native Kubernetes cluster to Heeler with a read-only service account and token.

Heeler harvests Kubernetes resources and models them as services linked to your code. Cloud-hosted clusters (**EKS**, **GKE**) are discovered automatically from your [AWS](/mrecEO40m5D6bt7Pq5pE/get-started/cloud-and-runtime/amazon-web-services.md) or [GCP](/mrecEO40m5D6bt7Pq5pE/get-started/cloud-and-runtime/google-cloud-platform.md) connection. For a **native** cluster, add it here with a read-only service account and token.

{% hint style="info" %}
**EKS, GKE, and AKS clusters appear under Kubernetes Clusters automatically** once the cloud connection harvests them — you don't add them by hand with the steps below. EKS and AKS clusters do, however, each need a one-time grant so Heeler can reach and read their control plane; see [Cloud-discovered clusters (EKS and AKS)](#cloud-discovered-clusters-eks-and-aks). Use the steps in this section for **native** clusters that aren't reached through a cloud connection.
{% endhint %}

## Three prerequisites

1. **Network access** — the cluster's control plane must accept connections from Heeler's two IPs: `44.221.229.40/32` and `52.73.231.96/32`.
2. **A read-only setup applied** to the cluster (below).
3. **A read-only token** provided to Heeler (below).

## Step 1 — Apply the read-only setup

Download `heeler-readonly.yaml` and replace `<kube-system>` with your namespace in **three** places (the `ServiceAccount`, the `ClusterRoleBinding` subject, and the `Secret`). It creates a `heeler-readonly` ServiceAccount, a ClusterRole granting **`get`/`list`** on all resources, a binding, and a service-account-token Secret:

```yaml
apiVersion: v1
kind: ServiceAccount
metadata: { name: heeler-readonly, namespace: <kube-system> }
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata: { name: heeler-readonly-role }
rules:
- apiGroups: ['*']
  resources: ['*']
  verbs: [get, list]
- nonResourceURLs: ['*']
  verbs: [get, list]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata: { name: heeler-readonly }
roleRef: { apiGroup: rbac.authorization.k8s.io, kind: ClusterRole, name: heeler-readonly-role }
subjects:
- { kind: ServiceAccount, name: heeler-readonly, namespace: <kube-system> }
---
apiVersion: v1
kind: Secret
metadata:
  name: heeler-readonly
  namespace: <kube-system>
  annotations: { kubernetes.io/service-account.name: heeler-readonly }
type: kubernetes.io/service-account-token
```

```bash
kubectl apply -f heeler-readonly.yaml
```

## Step 2 — Get the read-only token

```bash
kubectl -n <kube-system> describe secret heeler-readonly
```

Save the **token** — it goes into the `token` field of the kubeconfig you'll paste into Heeler.

## Step 3 — Add the cluster in Heeler

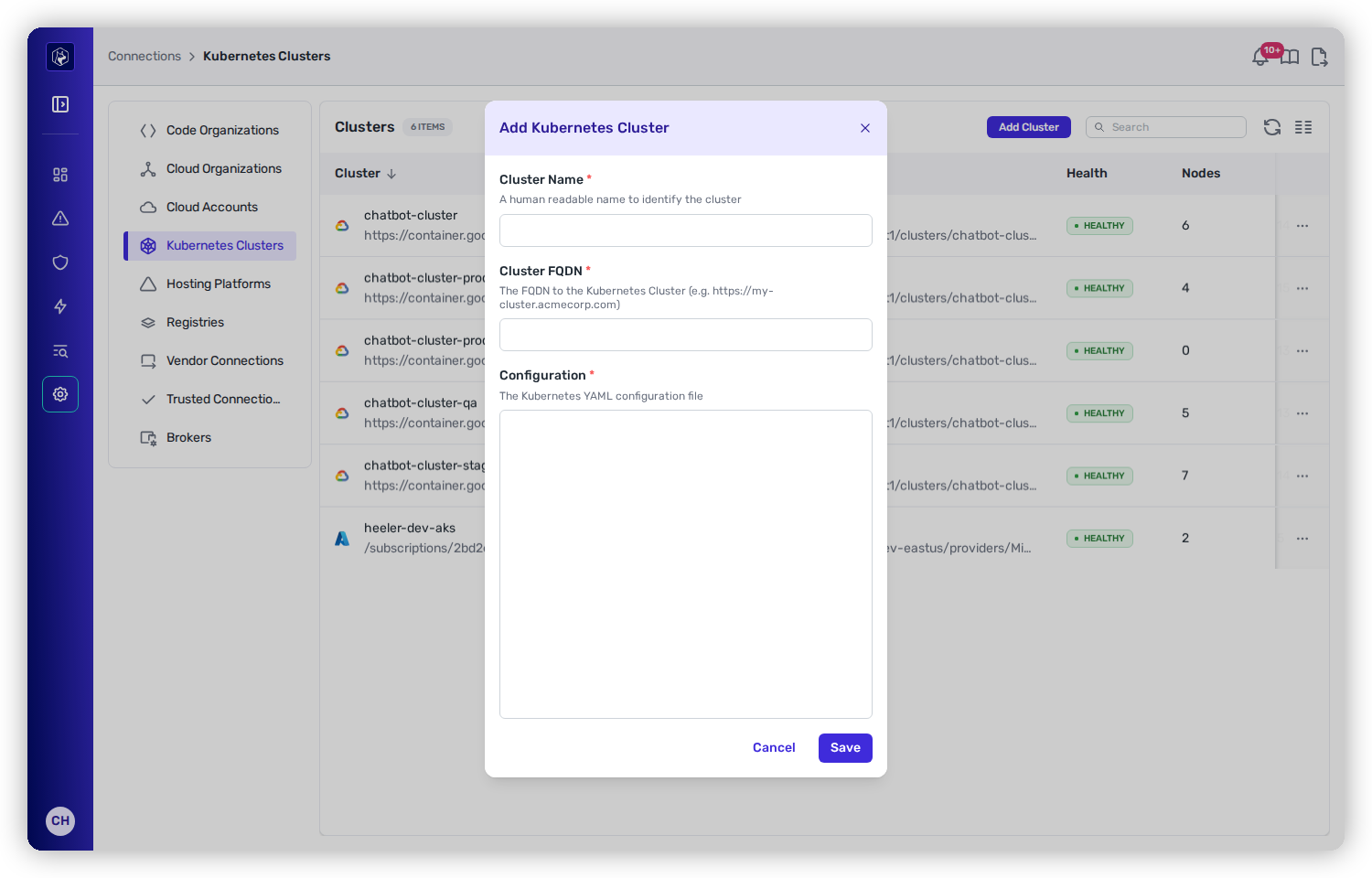

Go to **Connections → Kubernetes Clusters → Add Cluster** and fill in:

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-dec948256c5dcf6fb545396d94fd56fc4a91f2ec%2Fcc-gs-cloud-addcluster.png?alt=media" alt="The Add Kubernetes Cluster modal with Cluster Name, Cluster FQDN, and Configuration (YAML) fields."><figcaption><p>Add a native cluster with its FQDN and a read-only kubeconfig. EKS/GKE/AKS clusters appear here automatically from the cloud connection.</p></figcaption></figure>

<table><thead><tr><th width="200">Field</th><th>Value</th></tr></thead><tbody><tr><td><strong>Cluster Name</strong></td><td>A unique, human-friendly name (needn't match the kubeconfig cluster name).</td></tr><tr><td><strong>Cluster FQDN</strong></td><td>The cluster's fully qualified domain — matches <code>server</code> in the Configuration.</td></tr><tr><td><strong>Configuration</strong></td><td>A kubeconfig-style YAML (below) with the server, certificate-authority-data, and the bearer token.</td></tr></tbody></table>

```yaml
apiVersion: v1
kind: Config
clusters:
- name: <cluster name, e.g. acme-k8s-dev>
  cluster:
    certificate-authority-data: <CA data as one block>
    server: <FQDN/URL, e.g. https://k8s-dev.acme.com:443>
contexts:
- name: heeler-readonly@<cluster name>
  context: { cluster: <cluster name>, user: heeler-readonly }
current-context: heeler-readonly@<cluster name>
users:
- name: heeler-readonly
  user:
    token: <bearer token as one block>
```

Click **Save** — a **healthy** status confirms Heeler can reach and read the cluster.

## You're done when…

* [ ] The cluster shows a **healthy** status under **Connections → Kubernetes Clusters**.
* [ ] Workloads and deployments from the cluster appear in the [Catalog](/mrecEO40m5D6bt7Pq5pE/catalog/deployments.md).
* [ ] Services map from the cluster back to your code — see [Services](/mrecEO40m5D6bt7Pq5pE/catalog/services.md).

## Troubleshooting

<table><thead><tr><th width="300">Symptom</th><th>Fix</th></tr></thead><tbody><tr><td>Status is not <strong>healthy</strong></td><td>Heeler can't reach the control plane or authenticate. Confirm the control plane accepts Heeler's IPs (<code>44.221.229.40/32</code>, <code>52.73.231.96/32</code>), and that the <code>server</code>, <code>certificate-authority-data</code>, and <code>token</code> in the kubeconfig are correct and current.</td></tr><tr><td>No workloads or deployments appear</td><td>The <code>heeler-readonly</code> ClusterRole or binding wasn't applied — or was applied to the wrong namespace — so the token lacks <strong><code>get</code>/<code>list</code></strong>. Re-apply <code>heeler-readonly.yaml</code> and confirm the token belongs to that ServiceAccount.</td></tr></tbody></table>

## Cloud-discovered clusters (EKS and AKS)

EKS (AWS) and AKS (Azure) clusters are discovered from your cloud connection and appear under **Kubernetes Clusters** automatically — don't add them with the steps above. Each one does need a one-time grant so Heeler can reach its API server and read its resources. GKE clusters need no extra step.

### Amazon EKS

Three things must be in place for Heeler to harvest an EKS cluster:

* An [**AWS connection**](/mrecEO40m5D6bt7Pq5pE/get-started/cloud-and-runtime/amazon-web-services.md). Its setup deploys the `heeler-member` role, the `Heeler` policy (denies access to your data plane — `s3:GetObject`, `dynamodb:GetItem`, and the like), and an EKS access policy.
* **Network access** — Heeler's two IPs allowed on the cluster's public API server endpoint.
* **EKS API authentication** — already enabled for clusters created after January 1, 2024; legacy clusters may need updating.

The EKS access policy lets Heeler associate `AmazonEKSAdminViewPolicy` with its own access entry on each cluster. That AWS-managed policy is read-only. It also grants read on Kubernetes Secrets, which Heeler does not read.

To grant in-cluster access with a ClusterRole you apply yourself, see [A ClusterRole you manage](/mrecEO40m5D6bt7Pq5pE/get-started/cloud-and-runtime/amazon-web-services.md#a-clusterrole-you-manage).

#### Allow Heeler's IPs on the API server endpoint

1. Open the cluster's **Networking** tab → **Manage** → **Endpoint access**.
2. Select the **Public and private** option.
3. Under **Advanced settings**, add Heeler's two IPs to the **Public access source allowlist** (CIDR block): `44.221.229.40/32` and `52.73.231.96/32`.
4. **Save changes**.

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2FaHYUJ1u3wKkgLArQvsEy%2F1%20--%20Manage%20endpoint%20access%20--%20gimp.png?alt=media&amp;token=eadc7e85-7ef2-4e48-95ed-320d5b60b595" alt="The EKS Networking tab with Manage → Endpoint access selected in the AWS console."><figcaption><p>On the cluster's <strong>Networking</strong> tab, choose <strong>Manage → Endpoint access</strong>.</p></figcaption></figure>

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fnqxnp6673AJ1oqonK3KW%2F2%20--%20CIDR%20block%20--%20gimp.png?alt=media&amp;token=756abfcf-52fe-4915-8771-d64d3d831391" alt="Public access source allowlist with Heeler&#x27;s two CIDR blocks entered in the AWS console."><figcaption><p>Add Heeler's two IPs to the <strong>Public access source allowlist</strong>.</p></figcaption></figure>

If you manage the cluster with Terraform, set `endpoint_public_access` and `public_access_cidrs` in `vpc_config`:

```hcl
resource "aws_eks_cluster" "this" {
  name = var.cluster_name

  vpc_config {
    subnet_ids         = var.subnet_ids
    security_group_ids = [var.cluster_sg_id]

    # "Public and private" endpoint access
    endpoint_public_access  = true
    endpoint_private_access = true

    # Public access source allowlist includes Heeler's two IPs
    public_access_cidrs = [
      "44.221.229.40/32",
      "52.73.231.96/32",
    ]
  }
}
```

#### Enable EKS API authentication (legacy clusters only)

Clusters created after January 1, 2024 already have the required **Cluster Authentication Mode** — no action needed. For a legacy cluster:

1. Open the cluster's **Access** tab → **Manage**.
2. If the mode is `ConfigMap`, choose **EKS API and ConfigMap**. (Don't choose `EKS API` alone while you still manage access through `ConfigMap`.)
3. **Save changes**.

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2FIctve2LUG6OYFJ7CcSma%2F3%20--%20Manage%20access%20configuration%20--%20gimp.png?alt=media&amp;token=52f08d70-8446-435f-bc81-f89ca4017777" alt="The EKS Access tab with Manage selected in the AWS console."><figcaption><p>On the cluster's <strong>Access</strong> tab, choose <strong>Manage</strong>.</p></figcaption></figure>

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2FPP9SvhyIFoUYzWGIYSjJ%2F4%20--%20EKS%20API%20and%20ConfigMap%20--%20gimp.png?alt=media&amp;token=02d84c5a-3fcc-4d09-8b92-79b863437476" alt="Cluster Authentication Mode set to EKS API and ConfigMap in the AWS console."><figcaption><p>Set the authentication mode to <strong>EKS API and ConfigMap</strong>.</p></figcaption></figure>

With Terraform, confirm `access_config.authentication_mode` is `API_AND_CONFIG_MAP` (or `API`):

```hcl
resource "aws_eks_cluster" "this" {
  name = var.cluster_name

  access_config {
    authentication_mode = "API_AND_CONFIG_MAP" # or "API"
  }
}
```

### Azure AKS

Four things must be in place for Heeler to harvest an AKS cluster:

* An [**Azure connection**](/mrecEO40m5D6bt7Pq5pE/get-started/cloud-and-runtime/microsoft-azure.md) that authenticates with a client secret and covers the subscription that hosts the cluster.
* **Network access** — Heeler's two IPs in the cluster's **Authorized IP ranges**.
* The Azure connection's **service principal** granted two cluster role assignments.
* **Microsoft Entra ID authentication with Azure RBAC** enabled on the cluster.

{% hint style="warning" %}
**AKS onboarding requires a client-secret Azure connection.** Heeler builds each AKS cluster's `kubeconfig` with `kubelogin`, which needs a client secret. On an Azure connection that uses federated identity, discovered AKS clusters are listed as inaccessible under the connection's Health badge. Add the cluster with a kubeconfig using the steps at the top of this page, or use a client-secret Azure connection.
{% endhint %}

#### Allow Heeler's IPs on the API server

1. Open the cluster's **Settings → Networking → Resource Settings → Manage**.
2. Set **Authorized IP ranges** to a comma-separated list that includes `44.221.229.40/32,52.73.231.96/32`.
3. **Save**.

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2FVRBPhO3SQmNLVxQeQInl%2F1%20--%20Networking%20--%20gimp.png?alt=media&amp;token=bbd2ca20-5456-4d45-acc9-7163c72f2d43" alt="AKS Networking settings with Heeler&#x27;s IPs in the Authorized IP ranges field in the Azure console."><figcaption><p>Add Heeler's two IPs to the cluster's <strong>Authorized IP ranges</strong>.</p></figcaption></figure>

With Terraform, add Heeler's IPs to `api_server_access_profile.authorized_ip_ranges`:

```hcl
resource "azurerm_kubernetes_cluster" "this" {
  # ...
  api_server_access_profile {
    authorized_ip_ranges = [
      "44.221.229.40/32",
      "52.73.231.96/32",
      "<your other IPs>",
    ]
  }
}
```

#### Assign the two cluster roles to the service principal

Grant the service principal used for the Azure connection **both** roles, scoped to each cluster:

* `Azure Kubernetes Service Cluster User Role`
* `Azure Kubernetes Service RBAC Cluster Admin`

On each cluster, open **Access control (IAM) → Add → Add role assignment**. Select a role and **Next**; under **Members**, confirm **Assign access to** is *User, group, or service principal*, click **+ Select members**, search for the service principal **by name**, **Select** it, then **Review + assign**. Repeat for the second role.

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2FsdcHMyLnhQS5Mv1mhm16%2F2%20--%20Add%20role%20assignment%20--%20gimp.png?alt=media&amp;token=8fd98f0a-7b10-47c6-8e25-a966a532692a" alt="AKS Access control (IAM) with Add → Add role assignment in the Azure console."><figcaption><p>On the cluster, open <strong>Access control (IAM) → Add → Add role assignment</strong>.</p></figcaption></figure>

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2FxDm37FMWrSTAsOZipTKf%2F3%20--%20Select%20role%20--%20gimp.png?alt=media&amp;token=4bdbb839-23c9-4113-9b8d-efdbb4407f61" alt="Selecting an Azure Kubernetes Service role in the role-assignment dialog in the Azure console."><figcaption><p>Search for and select each role in turn.</p></figcaption></figure>

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2FkFDuinDJWVk8Jdz6cjJk%2F4%20--%20Select%20service%20principal%20--%20gimp.png?alt=media&amp;token=ce60ebe7-2a27-4dd8-b776-718816445916" alt="Selecting the App Registration service principal as the member in the Azure console."><figcaption><p>Add the connection's service principal as the member, then <strong>Review + assign</strong>.</p></figcaption></figure>

With Terraform, add two `azurerm_role_assignment` resources scoped to the cluster:

```hcl
data "azuread_service_principal" "aks_service_principal" {
  client_id = var.client_id
}

resource "azurerm_role_assignment" "aks_cluster_user_role" {
  scope                = azurerm_kubernetes_cluster.aks.id
  role_definition_name = "Azure Kubernetes Service Cluster User Role"
  principal_id         = data.azuread_service_principal.aks_service_principal.object_id
}

resource "azurerm_role_assignment" "aks_rbac_cluster_admin" {
  scope                = azurerm_kubernetes_cluster.aks.id
  role_definition_name = "Azure Kubernetes Service RBAC Cluster Admin"
  principal_id         = data.azuread_service_principal.aks_service_principal.object_id
}
```

#### Enable Entra ID authentication with Azure RBAC

1. Open the cluster's **Settings → Security Configuration → Authentication and Authorization**.
2. Select **Microsoft Entra ID authentication with Azure RBAC**.
3. **Apply**.

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fd3lg6fgfdm8A9ksPIT0Y%2F8%20--%20Entra%20--%20gimp.png?alt=media&amp;token=972a1ecf-0b99-4d3b-af74-b614b6639f96" alt="AKS Authentication and Authorization set to Microsoft Entra ID authentication with Azure RBAC in the Azure console."><figcaption><p>Set <strong>Authentication and Authorization</strong> to <strong>Microsoft Entra ID authentication with Azure RBAC</strong>.</p></figcaption></figure>

With Terraform, the relevant settings are `azure_rbac_enabled = true` (under `azure_active_directory_role_based_access_control`) and `local_account_disabled = true`.

Once the settings propagate, Heeler harvests the cluster and relates it to the other resources in your cloud environment.

## Related

* [Connect Your Cloud and Runtime](/mrecEO40m5D6bt7Pq5pE/get-started/cloud-and-runtime.md) — the spine; EKS/GKE are discovered from the cloud connection.
* [On-Premises Broker](/mrecEO40m5D6bt7Pq5pE/get-started/registries-and-artifacts/on-premises-broker.md) — for cluster inventory collected by an in-cluster sidecar.


---
