# AWS CodeArtifact

Analyze the packages your teams publish to AWS CodeArtifact as first-party code, via a dedicated cross-account IAM role.

Heeler analyzes the libraries your organization publishes to **AWS CodeArtifact** — so the packages your teams build and consume are treated as first-party code: correlated with the rest of your inventory and evaluated for vulnerabilities, secrets, and policy drift, just like the repositories they originate from.

## The two IAM roles

Heeler reaches CodeArtifact through **two IAM roles**, keeping read-only discovery separate from the write-scope token permissions:

<table><thead><tr><th width="260">Role</th><th>What it does</th></tr></thead><tbody><tr><td><strong>Your existing AWS connection role</strong></td><td>The role Heeler already uses for cloud inventory. Its read-only CodeArtifact APIs (<code>ListRepositories</code>, <code>DescribeRepository</code>) inventory your domains and repositories so the modal can populate the account picker.</td></tr><tr><td><strong>A dedicated CodeArtifact role</strong></td><td>You create this in each account that hosts CodeArtifact. It holds the token + pull permissions (<code>GetAuthorizationToken</code>, <code>GetServiceBearerToken</code>, <code>ReadFromRepository</code>). Keeping these off the inventory role means no broad write permissions leak across accounts.</td></tr></tbody></table>

Heeler's worker role assumes the dedicated CodeArtifact role **directly** — there's no chain through your inventory role. The trust policy on the CodeArtifact role therefore trusts the **Heeler worker principal**, not your inventory role.

## Before you start

* An [**AWS connection in Heeler**](/mrecEO40m5D6bt7Pq5pE/get-started/cloud-and-runtime/amazon-web-services.md) for the account or organization that owns the CodeArtifact domain.
* The **Heeler inventory role has CodeArtifact read permissions** so discovery can populate the account picker. Add these if they aren't already present:

```json
{
  "Sid": "HeelerCodeArtifactInventory",
  "Effect": "Allow",
  "Action": [
    "codeartifact:ListRepositories",
    "codeartifact:DescribeRepository",
    "codeartifact:ListTagsForResource"
  ],
  "Resource": "*"
}
```

* The **dedicated CodeArtifact role exists** in every account you want to enable. The **Add CodeArtifact Registry** modal generates the exact AWS CLI commands on Step 1 — run them in each account.

## The dedicated CodeArtifact role

The modal's Step 1 generates the CLI commands, including a **trust policy** that trusts Heeler's worker principal and a **permissions policy** granting:

```json
{
  "Sid": "HeelerCodeArtifactAccess",
  "Effect": "Allow",
  "Action": [
    "codeartifact:GetAuthorizationToken",
    "codeartifact:GetRepositoryEndpoint",
    "codeartifact:ReadFromRepository",
    "codeartifact:ListRepositories",
    "codeartifact:DescribeRepository"
  ],
  "Resource": "*"
},
{
  "Sid": "HeelerCodeArtifactBearerToken",
  "Effect": "Allow",
  "Action": "sts:GetServiceBearerToken",
  "Resource": "*",
  "Condition": { "StringEquals": { "sts:AWSServiceName": "codeartifact.amazonaws.com" } }
}
```

{% hint style="info" %}
**External ID (optional).** To require an External ID, add a `sts:ExternalId` condition to the trust policy in every account, then enter the same value in the **External ID (Optional)** field on Step 2. Heeler doesn't generate this — pick any string and store it in your secret manager.
{% endhint %}

## Link a CodeArtifact registry

{% stepper %}
{% step %}

### Open the modal

In Heeler, go to **Connections → Registries → Add Registry → AWS CodeArtifact**.
{% endstep %}

{% step %}

### Step 1 — Setup

Expand **Show setup commands** and run the generated CLI in **each AWS account** you plan to enable.
{% endstep %}

{% step %}

### Step 2 — Details

* **Name** — a label for this registry in Heeler.
* **AWS Connection** — the IAM Role or AWS Organization connection Heeler already inventories from.
* **Accounts** — multi-select of accounts with CodeArtifact repositories under that connection. Each is labeled with its repository count (e.g. `123456789012 — 14 repositories`).
* **CodeArtifact IAM Role Name** — the short role name you created (default `heeler-codeartifact`).
* **External ID (Optional)** — only if your trust policy requires one.

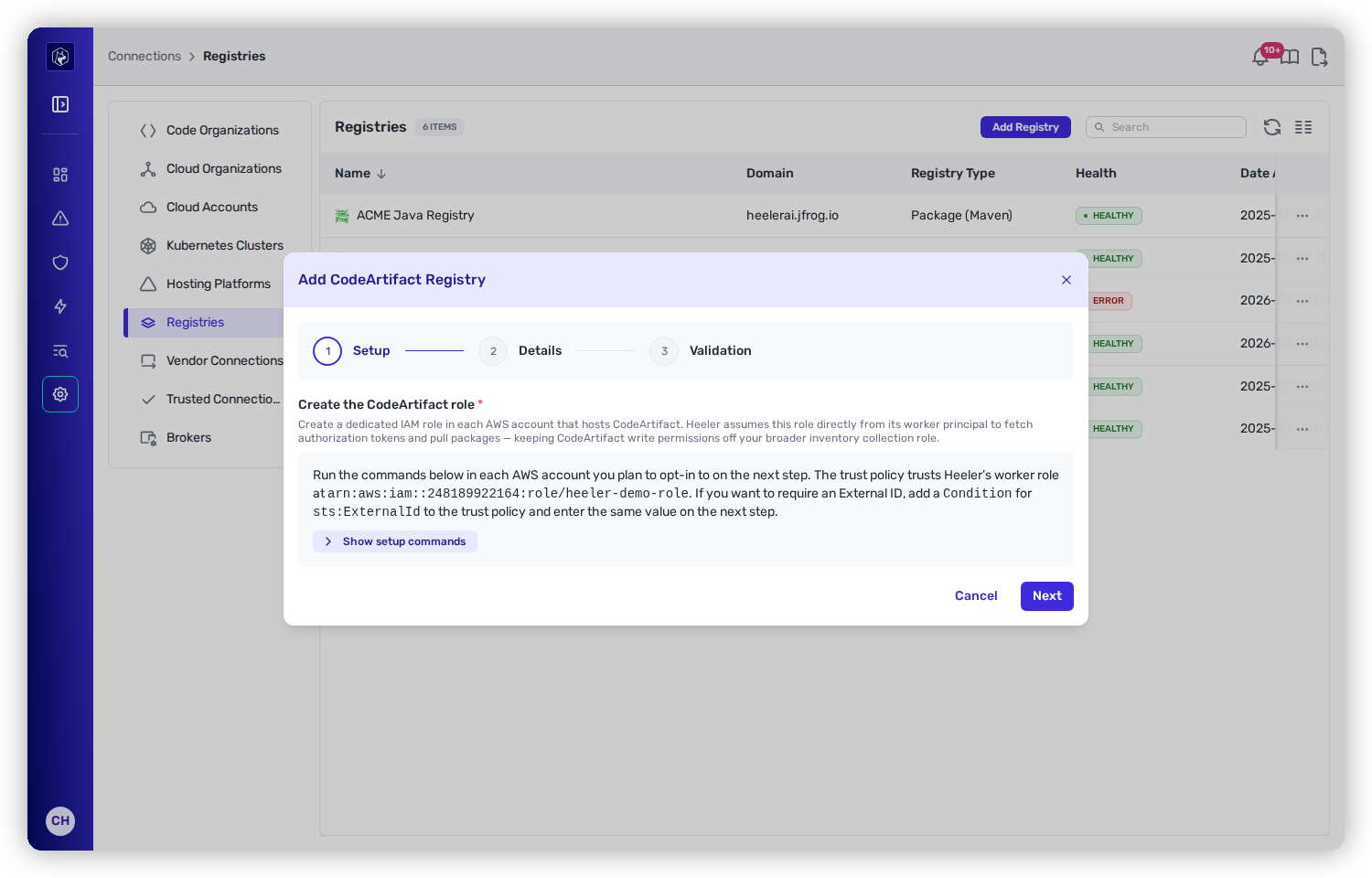

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-78905801f18d6ac983096d3569570e2dd3aaf94d%2Fcc-gs-reg-codeartifact-form.png?alt=media" alt="The Add CodeArtifact Registry modal on its Setup step, describing the dedicated IAM role and the trust policy, with the generated AWS CLI commands behind a Show setup commands disclosure."><figcaption><p>Step 1 generates the CLI to create the dedicated CodeArtifact role in each account.</p></figcaption></figure>
{% endstep %}

{% step %}

### Step 3 — Validation

Heeler runs three preflight checks: **assume the role** in one sampled account (the account ID is shown), **reach the CodeArtifact API** via `ListRepositories`, and **issue a CodeArtifact authorization token**. If all pass, click **Create registry**. If Heeler can connect but can't issue a token, fix the role's permissions and retry, or **Save anyway** (package pulls fail until `codeartifact:GetAuthorizationToken` and `sts:GetServiceBearerToken` are granted).
{% endstep %}
{% endstepper %}

{% hint style="info" %}
**Why sample one account?** Checking every selected account at create time is slow. The sampled check catches the common misconfiguration; the recurring health job (below) covers all of them.
{% endhint %}

## Continued-access health check

Heeler's connection-health job runs `validate` on its normal schedule, fanning out across **every account** in the registry and confirming it can still assume the role and call `ListRepositories`. If any account fails, the registry flips to **Error** with a message naming the failing accounts.

## Editing or removing

* **Edit** to change the name, role name, account selection, or External ID. The External ID field shows blank on edit — leave it blank to keep the saved value, or enter a new one to overwrite.
* **Remove** from **Connections → Registries**. This stops first-party analysis for those repositories; it does not delete anything in AWS or remove the dedicated role (delete that manually if you no longer need it).

## What Heeler does *not* do

* **Never publishes or mutates packages** — the dedicated role's write-scope is limited to authorization-token + read actions.
* **Never stores long-lived authorization tokens** — role assumption happens per request.
* **Never proxies your downloads** — your build systems keep pulling from CodeArtifact with their own credentials.

## Troubleshooting

<table><thead><tr><th width="300">Symptom</th><th>Fix</th></tr></thead><tbody><tr><td>Couldn't assume the CodeArtifact role</td><td>The role doesn't exist in the failing account, the trust policy doesn't trust Heeler's worker principal, or the External ID doesn't match. Regenerate the commands and reapply.</td></tr><tr><td><code>AccessDeniedException</code></td><td>The role is missing a required action — reapply the permissions policy in the failing account.</td></tr><tr><td>Preflight failed at <code>list_repositories</code></td><td>The assume succeeded but the API call was blocked; check the role's permissions policy in the sampled account.</td></tr></tbody></table>

## Related

* [Connect Your Cloud & Runtime → AWS](/mrecEO40m5D6bt7Pq5pE/get-started/cloud-and-runtime/amazon-web-services.md) — the AWS connection this builds on.
* [Connect Registries and Artifacts](/mrecEO40m5D6bt7Pq5pE/get-started/registries-and-artifacts.md) — the common flow.


---
