# Docker Hub

Connect Docker Hub so Heeler can pull and analyze the container images you run.

Heeler connects to the **Docker Hub** container registry to analyze the images running in your environment. It authenticates with a **Docker Hub Personal Access Token (PAT)**.

## Before you start

* **Administrator** role in Heeler.
* A Docker Hub account with permission to create a **Read-only Personal Access Token (PAT)** for the namespace whose images Heeler will analyze.

## Step 1 — Create a Docker Hub PAT

1. Go to [Docker Hub → Account Settings → Security](https://hub.docker.com/settings/security).
2. Click **Generate new token**, give it a name and expiration.
3. Set the access permission to **Read-only**.
4. Copy the generated token for Heeler.

## Step 2 — Add Docker Hub in Heeler

{% stepper %}
{% step %}

### Open the modal

Go to **Connections → Registries → Add Registry → Docker Hub**.
{% endstep %}

{% step %}

### Configure it

* **Name** — any label for the connection.
* **Username** — the user that generated the PAT.
* **Token** — the PAT (or OAT) from Step 1.
* **Namespace** — the Docker namespace for the repositories (e.g. `acmecorp`).

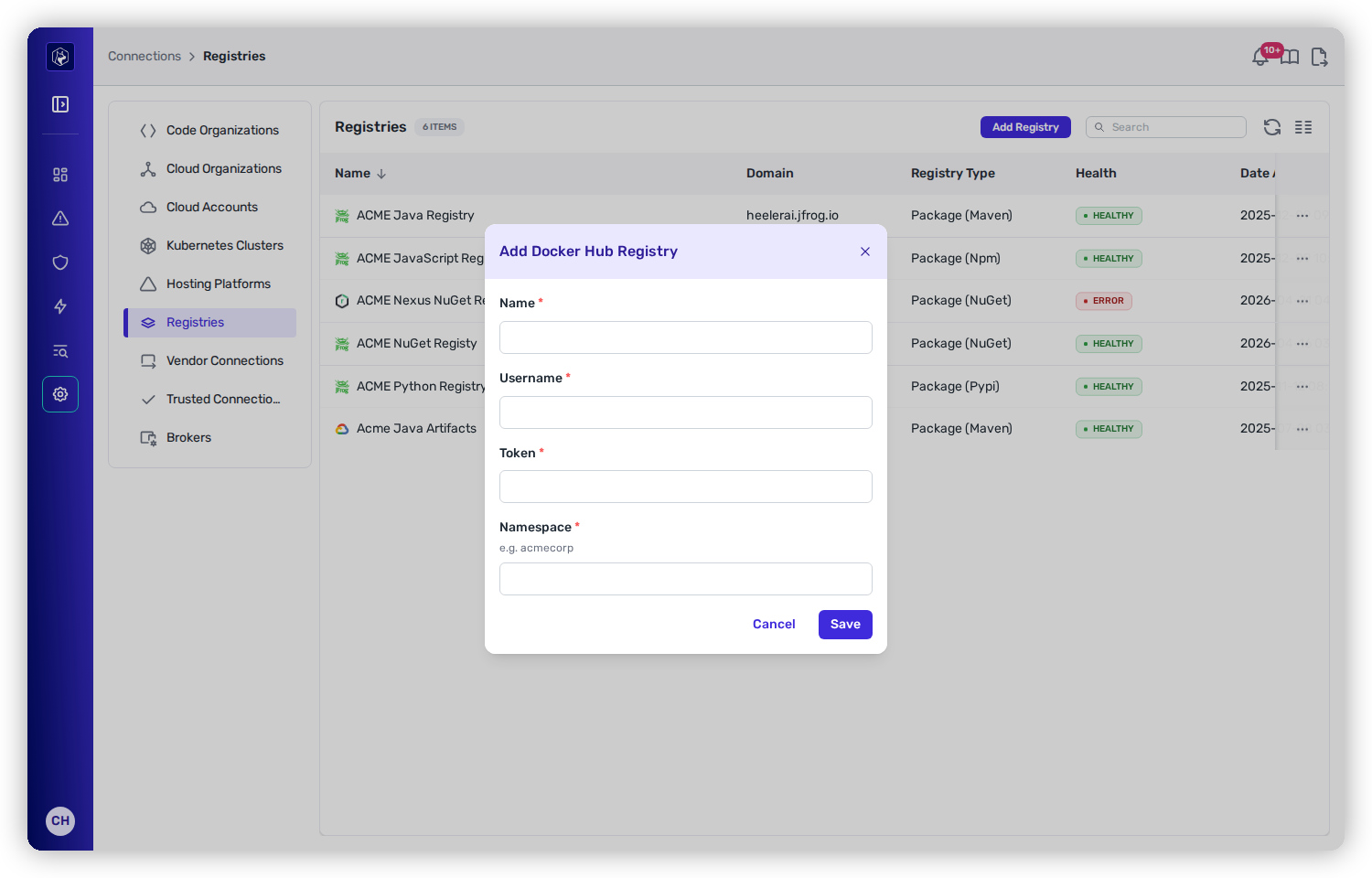

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-dcbac40c951b2424b597bf2799cc01c88b956f49%2Fcc-gs-reg-dockerhub-form.png?alt=media" alt="The Add Registry modal for Docker Hub, showing Name, Username, Token, and Namespace fields."><figcaption><p>Docker Hub connects with a read-only access token and your namespace.</p></figcaption></figure>

Click **Save**.
{% endstep %}

{% step %}

### Verify

Under **Connections → Registries**, confirm the Docker Hub connection is **Healthy**.

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fh0pO86n5SNYGHIvaYUO3%2Fharbor_listing.png?alt=media&amp;token=1e1031d9-242a-42cc-9851-4605cc2ea1f2" alt="The Registries list showing the Docker Hub connection with a Healthy status."><figcaption><p>Find the Docker Hub connection in the registry list and confirm its status is <strong>Healthy</strong>.</p></figcaption></figure>
{% endstep %}
{% endstepper %}

## You're done when…

* [ ] The Docker Hub connection shows **Healthy** under **Connections → Registries**.
* [ ] Images from your namespace correlate in the [Catalog](/mrecEO40m5D6bt7Pq5pE/catalog.md).
* [ ] Findings begin populating — see [Quickstart](/mrecEO40m5D6bt7Pq5pE/get-started/quickstart.md).

## Troubleshooting

<table><thead><tr><th width="300">Symptom</th><th>Fix</th></tr></thead><tbody><tr><td>Connection shows <strong>Unhealthy</strong></td><td>The token is wrong, expired, or not <strong>Read-only</strong> on the namespace. Generate a new read-only PAT and re-enter it with the username that created it.</td></tr><tr><td>No images appear in the Catalog</td><td>Check the <strong>Namespace</strong> — it must match the Docker namespace that owns the repositories (e.g. <code>acmecorp</code>).</td></tr></tbody></table>

## Related

* [Connect Registries and Artifacts](/mrecEO40m5D6bt7Pq5pE/get-started/registries-and-artifacts.md) — the common flow.


---
