# Bitbucket Cloud

Connect a Bitbucket Cloud workspace to Heeler with an Atlassian API token — fully supported, including PR guardrails.

Heeler connects to **Bitbucket Cloud** with an **Atlassian API token** scoped to Bitbucket. Bitbucket Cloud is **fully supported** — analysis, catalog, and [PR guardrails](/mrecEO40m5D6bt7Pq5pE/prevent/pr-guardrails.md) all run on it.

{% hint style="info" %}
On the **Add Code Organization** menu, this provider is listed as **Bitbucket**.
{% endhint %}

## Before you start

* An Atlassian account with access to the Bitbucket workspace.
* **Administrator** role in Heeler.
* Your Bitbucket **Username**, **Atlassian account email**, and **Workspace ID** (gathered below).

## Step 1 — Create a Bitbucket API token

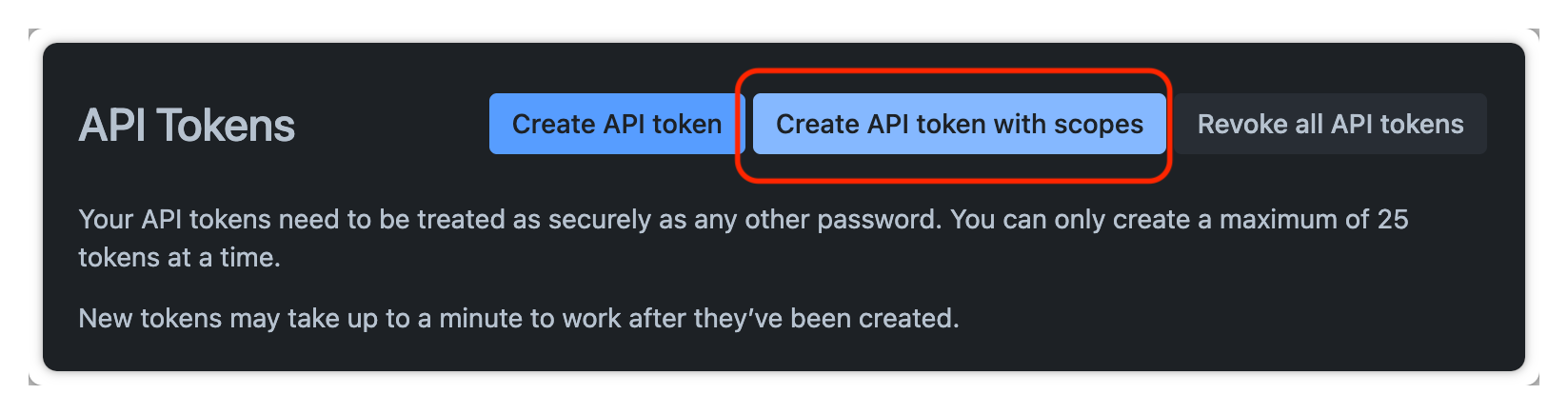

1. Go to [id.atlassian.com → API tokens](https://id.atlassian.com/manage-profile/security/api-tokens) and choose **Create API token with scopes**.
2. Give it a **Name** and set the expiration to the maximum (**1 year**).
3. Select **Bitbucket** as the product.
4. Add the permissions below, then **create** the token and **copy** it.

{% hint style="warning" %}
Only 10 permissions are shown at a time and these aren't in the first 10 — **search or page** through to select them all.
{% endhint %}

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-b11e790d51c4843c349e60b3dcf57d868af3b649%2Fcc-scm-bbcloud-01.png?alt=media" alt="The Atlassian API tokens page with Create API token with scopes."><figcaption><p>At id.atlassian.com, choose <strong>Create API token with scopes</strong>.</p></figcaption></figure>

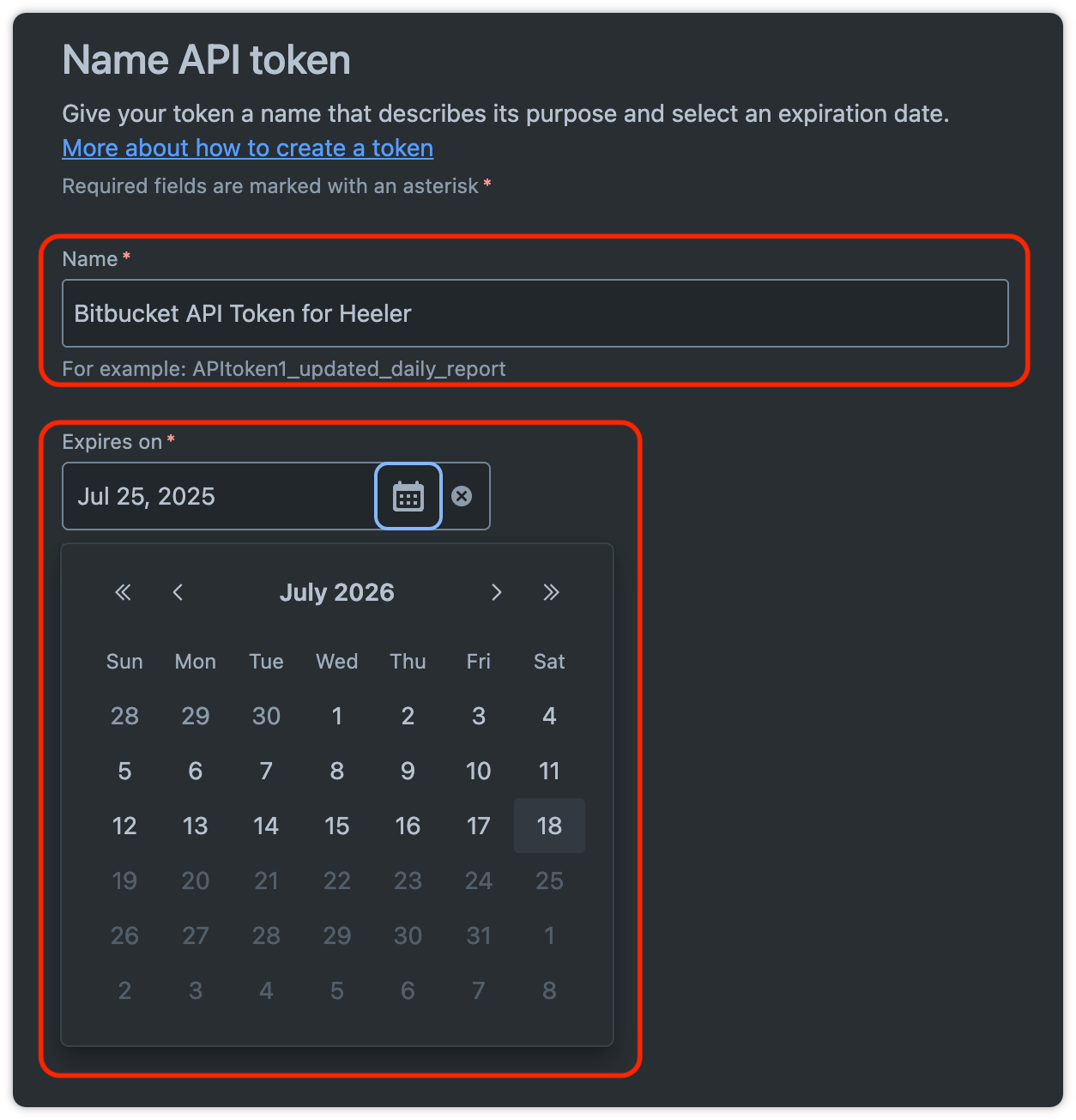

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-3d760f8acb71469ea1f44936af42f1a8fec05bf1%2Fcc-scm-bbcloud-expiration.png?alt=media" alt="Setting the API token expiration date one year out."><figcaption><p>Set the expiration to the maximum (<strong>1 year</strong>).</p></figcaption></figure>

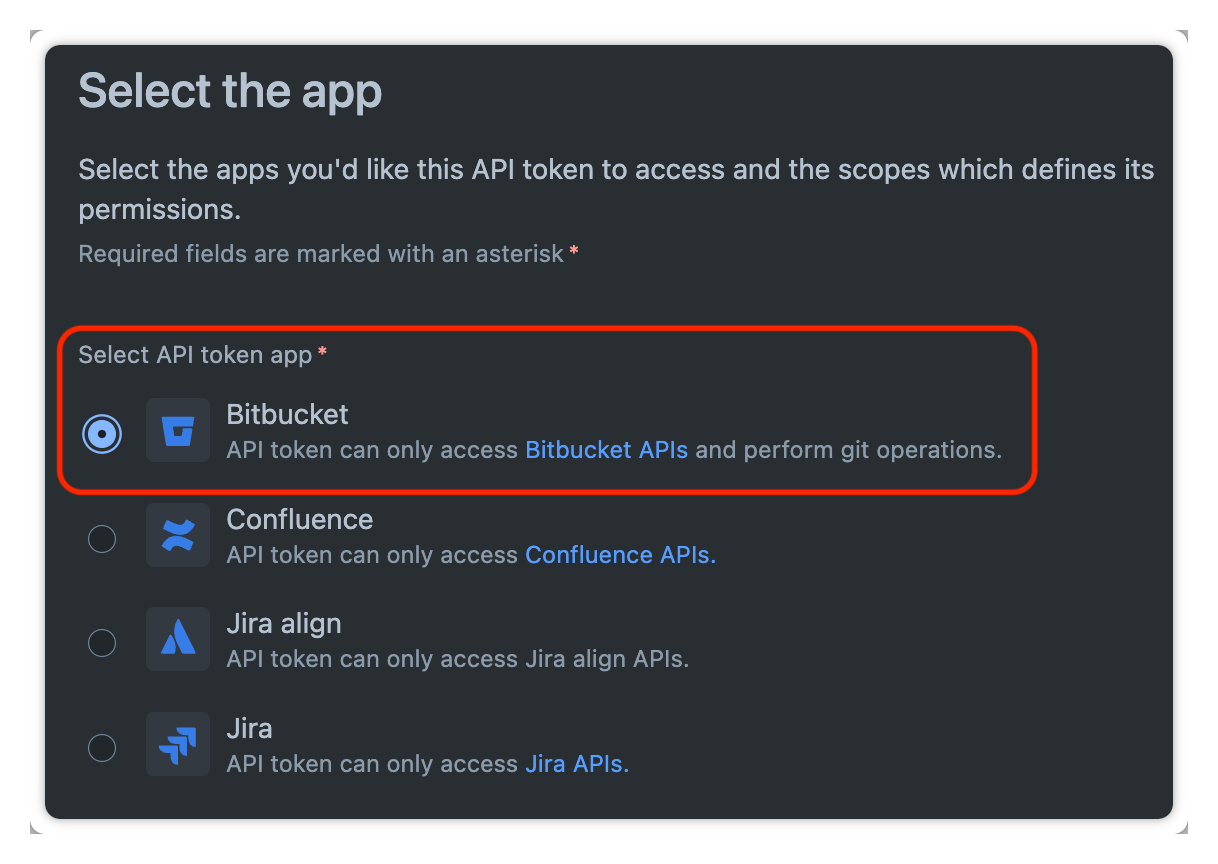

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-d12224c845a0a6f2074f7821aa48e2fbc4e30f90%2Fcc-scm-bbcloud-03.png?alt=media" alt="Selecting Bitbucket as the product for the API token."><figcaption><p>Scope the token to <strong>Bitbucket</strong>.</p></figcaption></figure>

<table><thead><tr><th width="140">Access</th><th>Scopes</th></tr></thead><tbody><tr><td><strong>Read</strong></td><td><code>read:account</code>, <code>read:user:bitbucket</code>, <code>read:workspace:bitbucket</code>, <code>read:project:bitbucket</code>, <code>read:repository:bitbucket</code>, <code>read:pullrequest:bitbucket</code>, <code>read:pipeline:bitbucket</code>, <code>read:permission:bitbucket</code>, <code>read:webhook:bitbucket</code></td></tr><tr><td><strong>Write</strong></td><td><code>write:repository:bitbucket</code>, <code>write:pullrequest:bitbucket</code>, <code>write:pipeline:bitbucket</code>, <code>write:webhook:bitbucket</code></td></tr><tr><td><strong>Delete</strong></td><td><code>delete:webhook:bitbucket</code></td></tr></tbody></table>

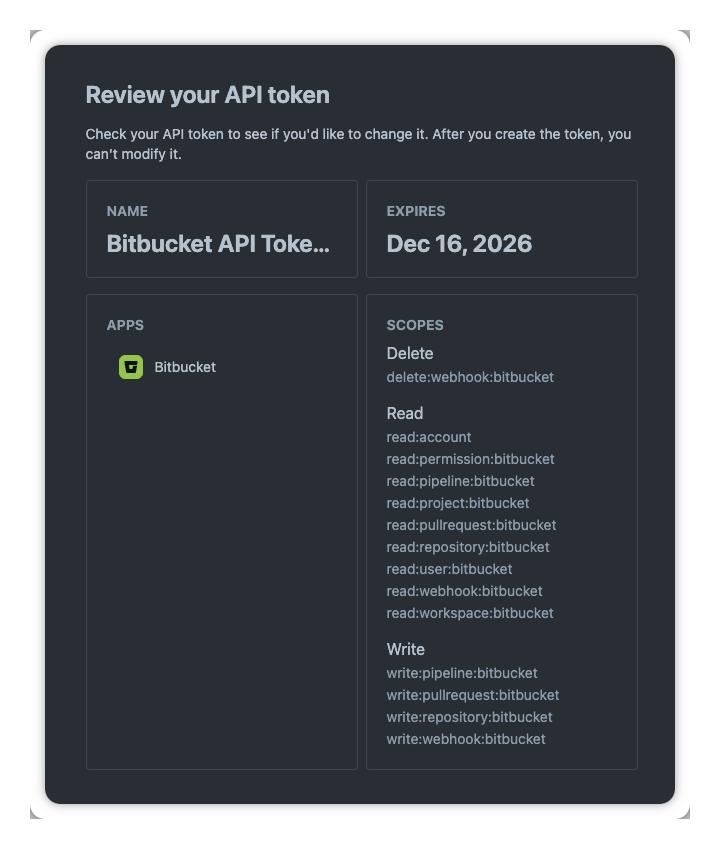

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-b212bee986325f8008c187a944b487b95f193477%2Fcc-scm-bbcloud-04.png?alt=media" alt="Selecting the Bitbucket read, write, and delete permissions for the API token."><figcaption><p>Select the read/write/delete permissions listed above.</p></figcaption></figure>

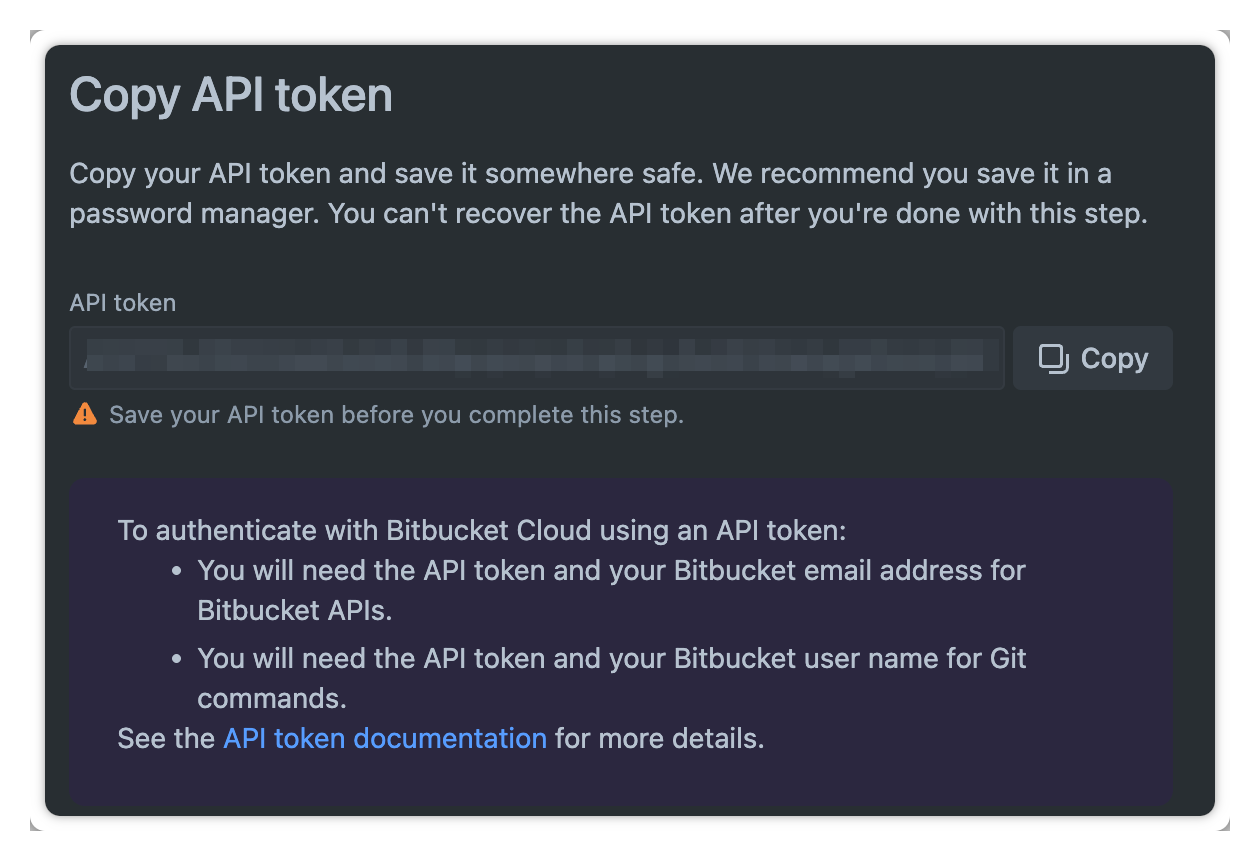

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-e9c43f74833be7311b2f9cf7eb9b9391dcf40e44%2Fcc-scm-bbcloud-05.png?alt=media" alt="Copying the generated Bitbucket API token."><figcaption><p>Copy the generated token — it's shown only once.</p></figcaption></figure>

## Step 2 — Gather your Bitbucket details

Heeler uses your Atlassian identity and workspace for API and webhook operations. Collect:

<table><thead><tr><th width="220">Value</th><th>Where to find it</th></tr></thead><tbody><tr><td><strong>Username</strong></td><td><strong>Settings → Personal Bitbucket settings → Bitbucket profile settings</strong>.</td></tr><tr><td><strong>Email</strong></td><td>Your <strong>Atlassian account email</strong> (Settings → Email aliases).</td></tr><tr><td><strong>Workspace ID</strong></td><td><strong>Settings → Workspace settings</strong> — copy the <strong>Workspace ID</strong>.</td></tr></tbody></table>

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2F3d1pmxPC7Uiku7nxmCIu%2F1%20--%20Personal%20Bitbucket%20settings.png?alt=media&amp;token=192416ec-2c1b-4514-bffd-c8d23b02b500" alt="Opening Personal Bitbucket settings from the Bitbucket account settings menu."><figcaption><p>Under <strong>Account settings</strong>, open <strong>Personal Bitbucket settings</strong>.</p></figcaption></figure>

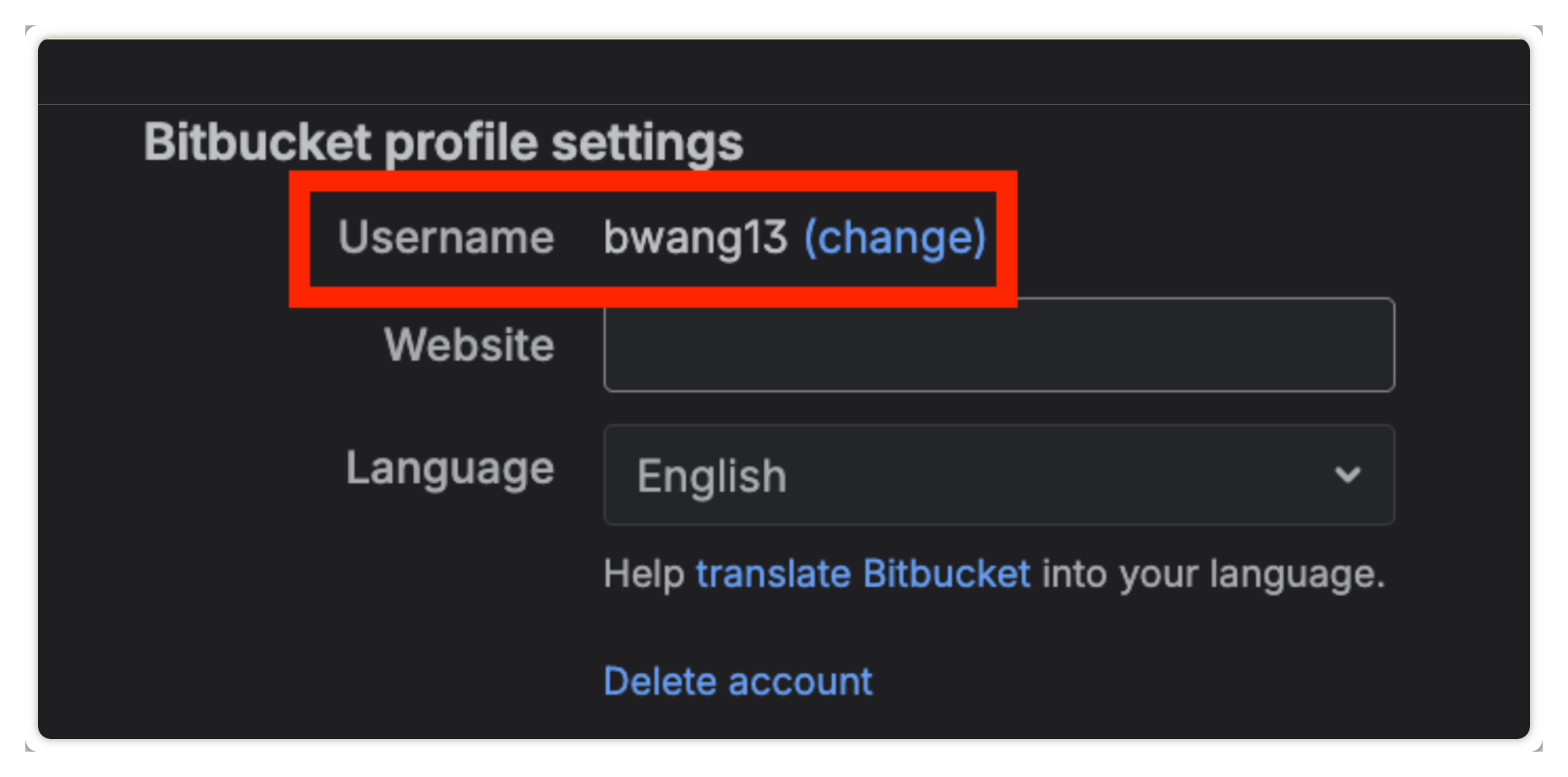

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-2fb1ee3e24f4b4c2d60fb37e40b0c00264c5a7a0%2Fcc-scm-bbcloud-07.png?alt=media" alt="Bitbucket profile settings showing the username."><figcaption><p>Copy your <strong>Username</strong> from Bitbucket profile settings.</p></figcaption></figure>

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2FWpXmosTGgXZQqU16WbcV%2F3--%20Bitbucket%20email.png?alt=media&amp;token=56aae055-b228-49a9-b4bc-90a7897945d7" alt="The Email aliases page showing the Atlassian account email address."><figcaption><p>Use your <strong>Atlassian account email</strong> from <strong>Email aliases</strong> as your Bitbucket email.</p></figcaption></figure>

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2FOfTRSIUMro0Y5SnxFuLB%2F4%20--%20Workspace%20Bitbucket%20settings.png?alt=media&amp;token=86f0378e-4f99-4c32-80b6-959328229ce2" alt="Opening Workspace settings from the Bitbucket account settings navigation."><figcaption><p>Open <strong>Workspace settings</strong> to find the Workspace ID.</p></figcaption></figure>

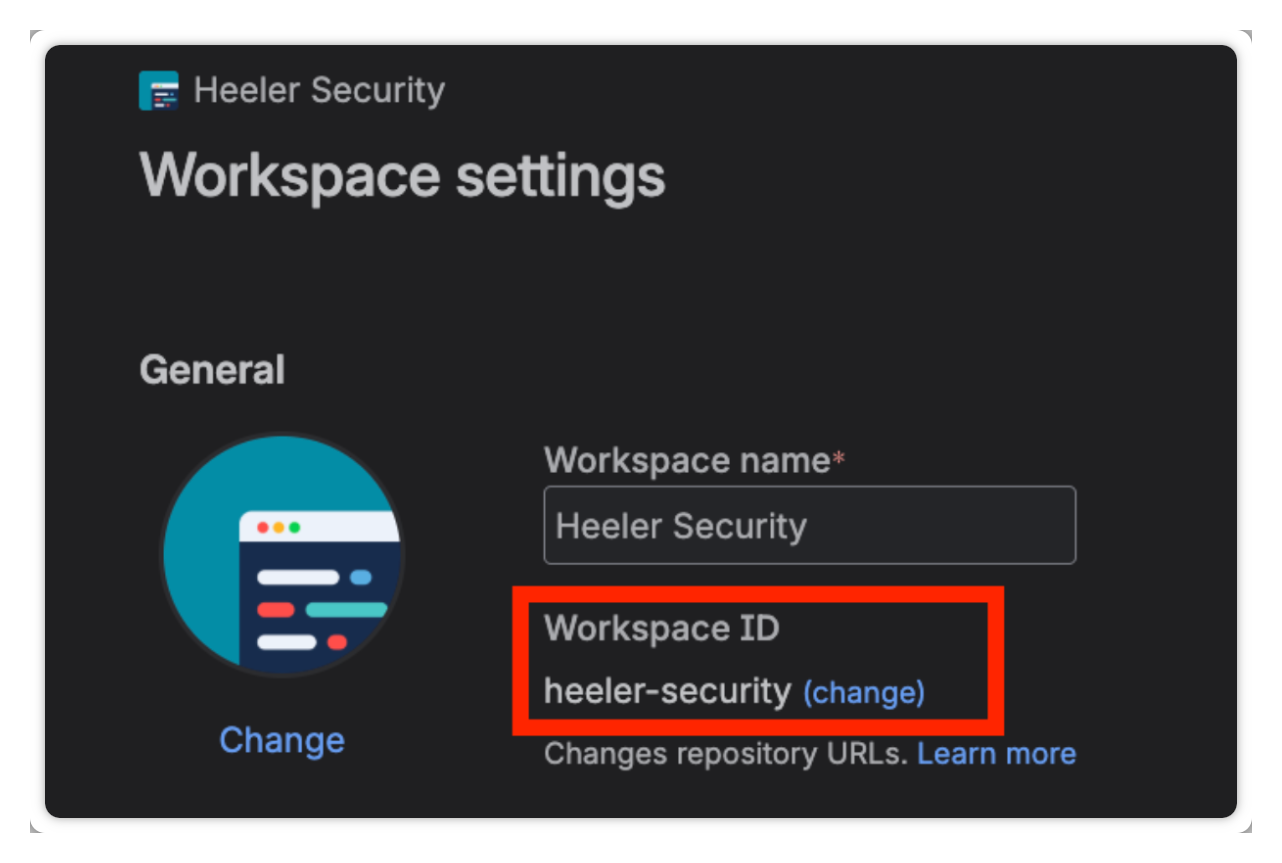

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-2d231558db180035e65882b4a3c305a77bd6d5e6%2Fcc-scm-bbcloud-10.png?alt=media" alt="Bitbucket workspace settings showing the Workspace ID."><figcaption><p>Copy the <strong>Workspace ID</strong> from Workspace settings.</p></figcaption></figure>

## Step 3 — Add Bitbucket Cloud to Heeler

{% stepper %}
{% step %}

### Open Code Organizations

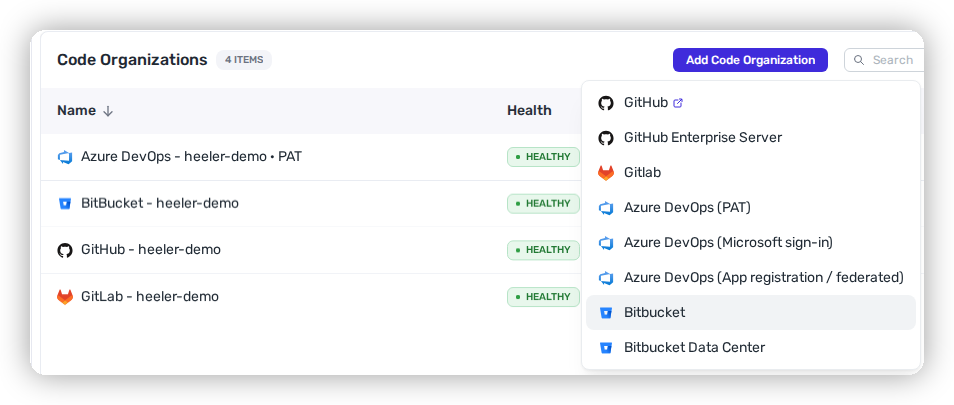

Click the **Settings** (gear) icon → **Connections → Code Organizations → Add Code Organization → Bitbucket**.

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-1989138f9f2c354d19da7b24c1e6dfa1c983eacc%2Fcc-scm-bbcloud-add-org.png?alt=media" alt="The Code Organizations settings page with the Add Code Organization button."><figcaption><p>On <strong>Code Organizations</strong>, click <strong>Add Code Organization</strong>.</p></figcaption></figure>
{% endstep %}

{% step %}

### Fill in the Credentials tab

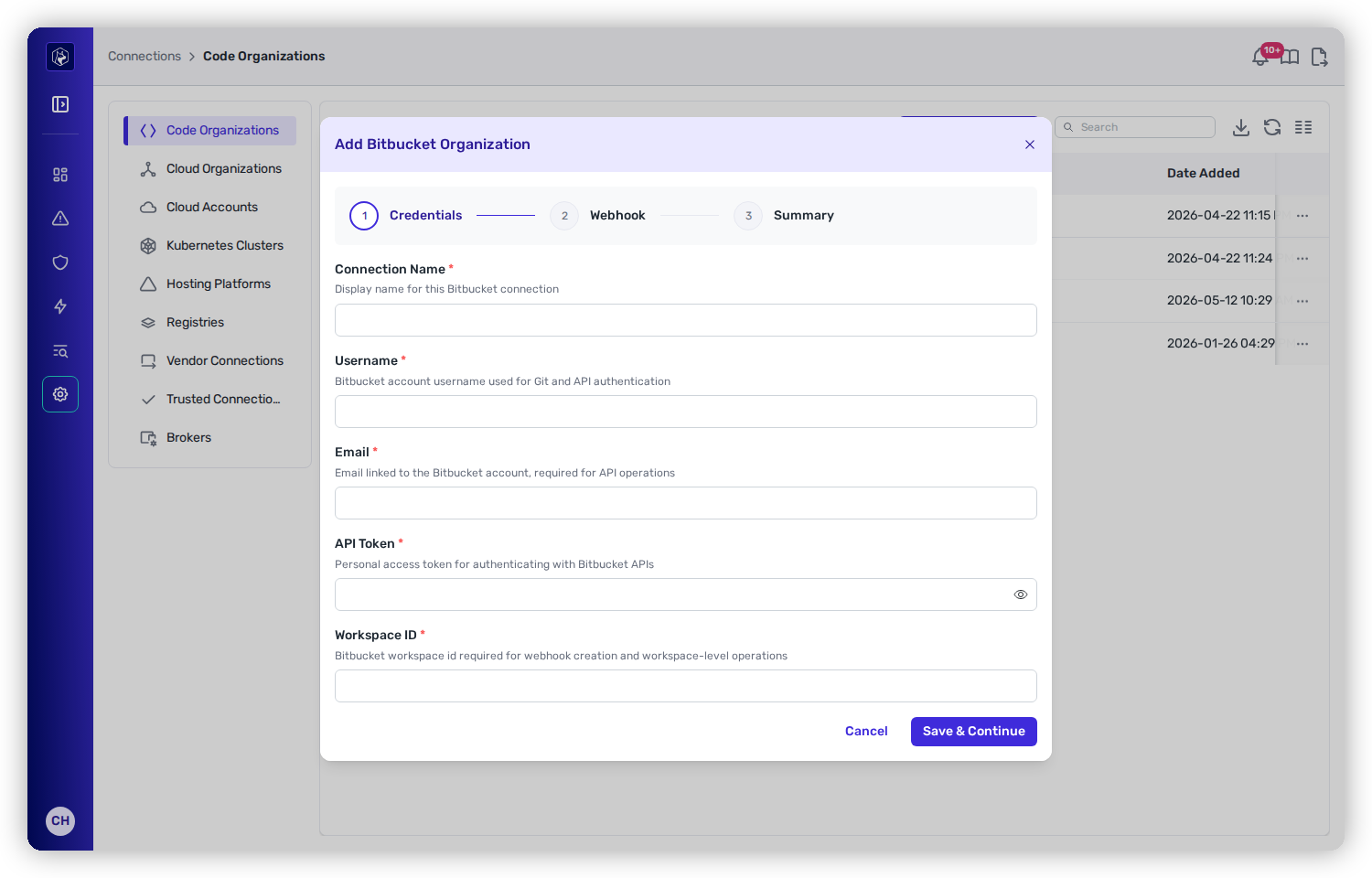

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-917972a36ae37b058b1b4ed86da014bbe0a90b90%2Fcc-gs-scm-bbcloud-form.png?alt=media" alt="The Add Bitbucket Organization wizard, Credentials step, with Connection Name, Username, Email, API Token, and Workspace ID fields, ahead of Webhook and Summary steps."><figcaption><p>The Bitbucket Cloud connection wizard: Credentials → Webhook → Summary.</p></figcaption></figure>

* **Connection Name** — a display name.
* **Username** — from Step 2.
* **Email** — your Atlassian account email.
* **API Token** — from Step 1.
* **Workspace ID** — from Step 2 (required for webhook creation).

Click **Save & Continue**.
{% endstep %}

{% step %}

### Confirm the webhook and summary

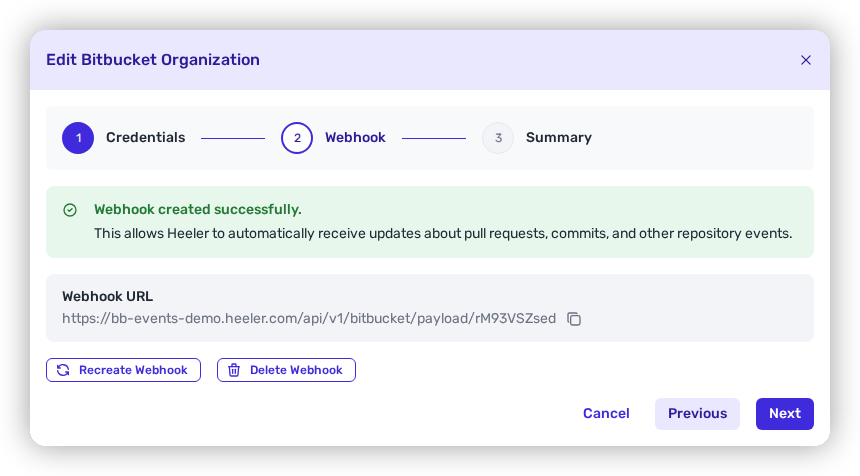

On the **Webhook** tab, Heeler creates a webhook to receive updates from your workspace — click **Next**.

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-73d600f6d16f72191cd7450592221a096e1c212d%2Fcc-scm-bbcloud-webhook.png?alt=media" alt="The Webhook step of the Bitbucket connection wizard showing the webhook Heeler will create."><figcaption><p>Heeler creates a webhook to receive updates from your workspace. Click <strong>Next</strong>.</p></figcaption></figure>

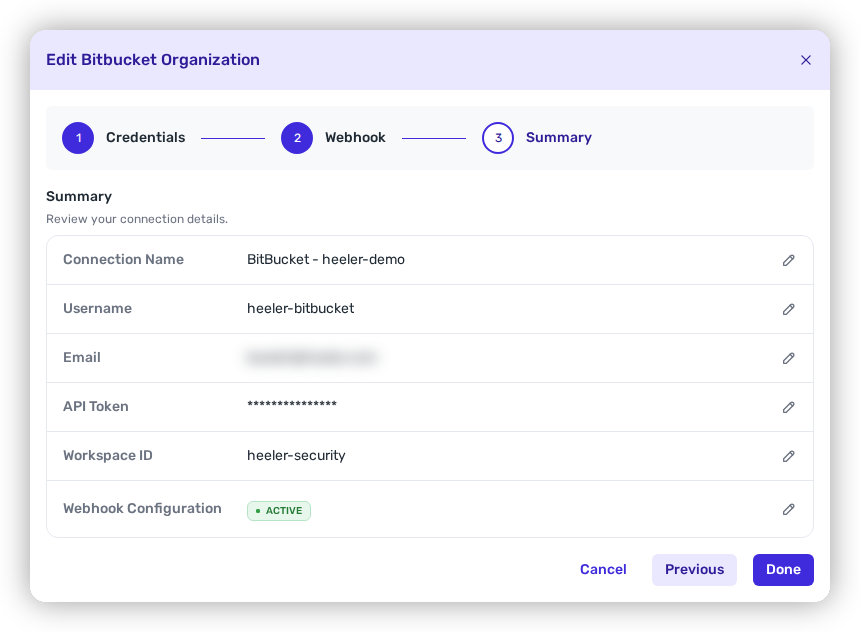

Review the **Summary** and click **Done**.

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-41aea4bc958dfd18399ed92d7102355f830863ef%2Fcc-scm-bbcloud-summary.png?alt=media" alt="The Summary step of the Bitbucket connection wizard."><figcaption><p>Review the <strong>Summary</strong> and click <strong>Done</strong>.</p></figcaption></figure>
{% endstep %}

{% step %}

### Verify

Confirm the connection shows **Healthy**, and that repositories appear in the [Catalog](/mrecEO40m5D6bt7Pq5pE/catalog/repositories.md).

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-fbe0298fea67cfc37aaed33d5232c8f5ba6400cb%2Fcc-scm-bbdc-healthy.png?alt=media" alt="The Bitbucket Cloud connection showing a Healthy status."><figcaption><p>A successful connection shows <strong>Healthy</strong>.</p></figcaption></figure>
{% endstep %}
{% endstepper %}

## Troubleshooting

<table><thead><tr><th width="280">Symptom</th><th>Fix</th></tr></thead><tbody><tr><td>Connection <strong>Unhealthy</strong></td><td>Confirm the API token is scoped to Bitbucket with all the listed permissions and hasn't expired, and that Username / Email / Workspace ID are correct.</td></tr><tr><td>Webhook didn't create</td><td>Confirm the <strong>Workspace ID</strong> is correct and the token includes <code>write:webhook:bitbucket</code>.</td></tr></tbody></table>

## Related

* [Bitbucket Data Center](/mrecEO40m5D6bt7Pq5pE/get-started/source-code-scm/bitbucket-data-center.md) — the self-hosted variant.
* [Connect Your Code](/mrecEO40m5D6bt7Pq5pE/get-started/source-code-scm.md) — the common flow and network requirements.


---
