# IaC Guardrails
Gate a pull request on infrastructure misconfigurations the branch introduces — in Terraform, OpenTofu, CloudFormation, Pulumi, or Kubernetes.
IaC guardrails gate a pull request on **infrastructure misconfigurations the branch introduces** — a bucket made public, a security group opened to the world, a container granted more privilege than it needs. Heeler compares the branch's results against the repository's **default-branch baseline**, so only misconfigurations the change actually adds can fire; your existing infrastructure backlog never blocks a PR.
This is the PR-time counterpart to [IaC findings](/mrecEO40m5D6bt7Pq5pE/findings/iac.md). It's the cheapest place to catch a misconfiguration, because the definition hasn't been applied yet — nothing has been stood up wrong.
IaC guardrails use the `Code` entity, so an IaC guardrail is **dedicated** — it can't be combined with dependency or hygiene rules. It's a separate rule type from [SAST](/mrecEO40m5D6bt7Pq5pE/prevent/pr-guardrails/guardrail-types/sast-guardrails.md), even though both sit on the same entity: an IaC guardrail only ever matches findings Heeler classifies as infrastructure misconfigurations, and a SAST guardrail only ever matches source-code weaknesses. Neither can accidentally fire on the other's findings.
## Creating one
In the guardrail builder, choose **IaC Misconfigurations** as the check type, then its **New IaC Misconfiguration** condition. Scope and enforcement work the same as any other guardrail — see [Creating and Scoping a Guardrail](/mrecEO40m5D6bt7Pq5pE/prevent/pr-guardrails/building-guardrails/creating-and-scoping-a-guardrail.md).

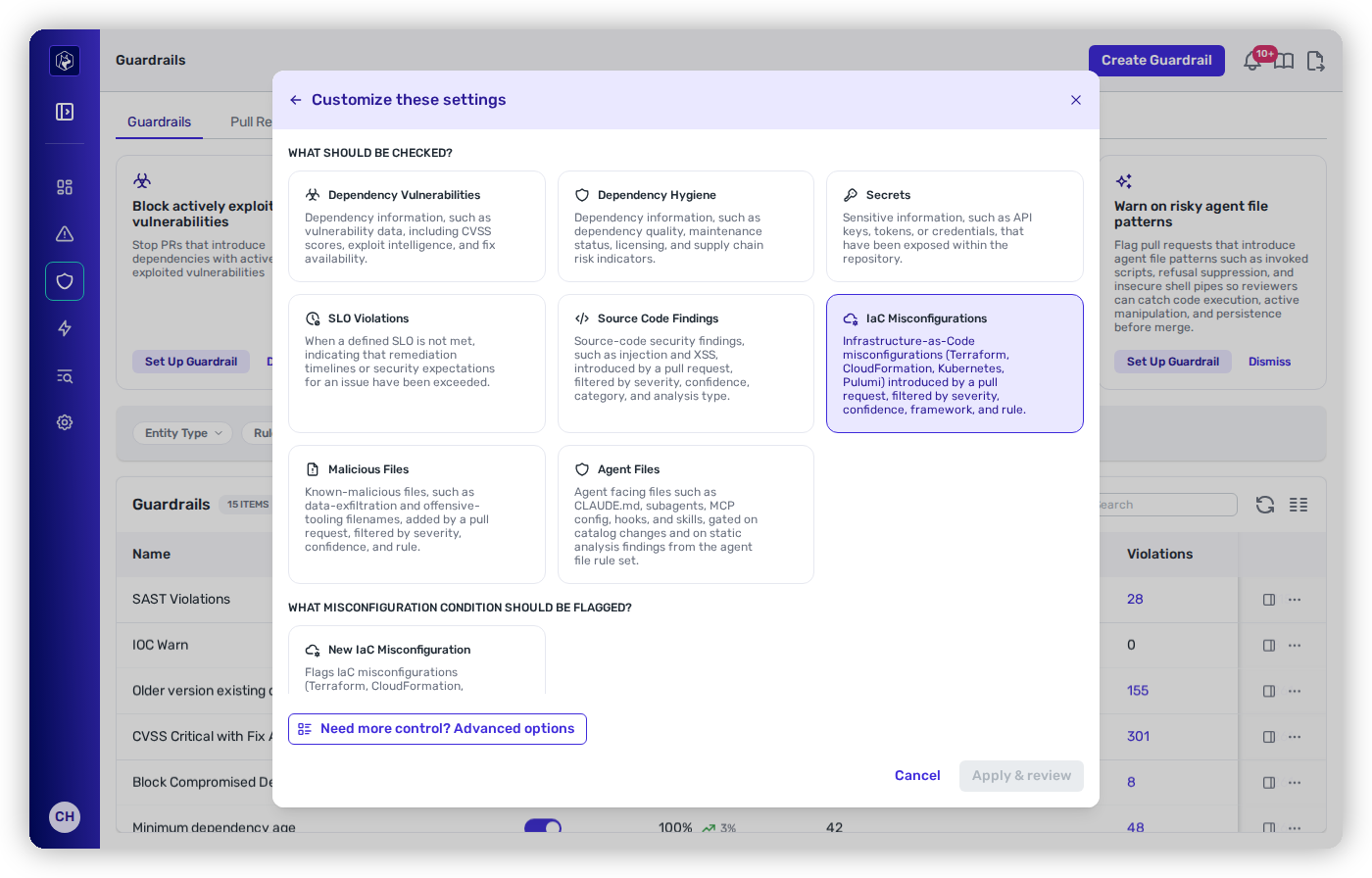

Choosing IaC Misconfigurations in the guardrail builder.
## Conditions
Match the misconfigurations you care about with any combination of the four filters. Each is an **OR set** — several values in one filter widen it — and **leaving a filter empty means it doesn't filter at all**.
| Filter | Values |
| -------------- | ------------------------------------------------------------------------------------ |
| **Severity** | Critical, High, Medium, Low, Info. Empty means all severities. |
| **Confidence** | High, Medium, Low. Empty means all confidences. |
| **Frameworks** | Terraform, OpenTofu, CloudFormation, Pulumi, Kubernetes. Empty means all frameworks. |
| **Rule IDs** | Specific checks, by ID (for example `ckv-aws-19`). Empty means all rules. |
{% hint style="success" %}
**Frameworks is the filter that makes rollout practical.** Teams rarely adopt IaC gating everywhere at once. Scope a **Block** guardrail to **Terraform** where your definitions are mature and reviewed, and run a separate **Warn** guardrail for **Kubernetes** while manifests are still churning — same policy, two different levels of confidence, no all-or-nothing decision.
{% endhint %}
**Rule IDs** is the precision instrument: once the [IaC Rules view](/mrecEO40m5D6bt7Pq5pE/findings/iac/rules.md) shows you which check has the worst reach across your estate, gating that specific ID stops the bleeding while you work through the backlog it already created.
## Requirements
{% hint style="warning" %}
**Baseline required.** An IaC guardrail needs a completed scan of the repository's **default branch** to establish the baseline before it can enforce. It's evaluated once per repository (not per code root).
{% endhint %}
{% hint style="info" %}
**On GitLab, a CI pipeline is required.** Heeler waits for a CI pipeline to run on the commit before it scans a merge request. A repository with **no pipeline** won't be evaluated — a minimal `.gitlab-ci.yml` is enough to enable scanning.
{% endhint %}
IaC and SAST guardrails share the same PR-time scan, so a repository already set up for [SAST guardrails](/mrecEO40m5D6bt7Pq5pE/prevent/pr-guardrails/guardrail-types/sast-guardrails.md) needs nothing further for IaC.
## What developers see on the PR
When an IaC guardrail matches, each misconfiguration renders **inline on the pull request** with its severity, the check that fired, the **definition file and line**, and the misconfiguration's detail — so the reviewer sees the offending declaration rather than a policy name.
Under **Block**, the status check fails and — with branch protection enabled — the merge is held until the definition is corrected. Actions and scope are the standard **Observe / Warn / Block** across the [scope model](/mrecEO40m5D6bt7Pq5pE/prevent/pr-guardrails.md#scope-where-each-guardrail-applies).
## Related
* [IaC findings](/mrecEO40m5D6bt7Pq5pE/findings/iac.md) — the misconfigurations already in your definitions, and the resource each one configures.
* [SAST Guardrails](/mrecEO40m5D6bt7Pq5pE/prevent/pr-guardrails/guardrail-types/sast-guardrails.md) — the same entity, the other rule type: source-code weaknesses.
* [Creating and Scoping a Guardrail](/mrecEO40m5D6bt7Pq5pE/prevent/pr-guardrails/building-guardrails/creating-and-scoping-a-guardrail.md) — the wizard, and how scope decides where a guardrail applies.
---
