# PR Guardrails

Enforce your security policy on every pull request — as a native status check that can observe, warn, or block.

Guardrails are Heeler's enforcement layer. Every time a developer opens or updates a pull request, Heeler evaluates the change against your security policy and reports back as a **native status check** — the same green check or red X your team already gates merges on. The result lands on the pull request itself — no separate dashboard or CLI step.

Because Heeler evaluates with full context, a guardrail can be precise: block a *reachable, internet-exposed* critical vulnerability while only warning on the same CVE in an internal, unreachable service.

{% hint style="info" %}
**Where to find it.** Guardrails live under **Guardrails** in the top navigation, with three tabs: **Guardrails** (your policies), **Pull Requests** (every PR Heeler has evaluated), and **Violations** (individual rule hits).
{% endhint %}

{% hint style="info" %}
**Who can create and enable guardrails.** Creating, editing, and enabling guardrails requires the **Administrator** role. An **Administrator (read-only)** can view guardrail activity but can't change a policy — see [Roles and Permissions](/mrecEO40m5D6bt7Pq5pE/get-started/users-and-access/roles-and-permissions.md).
{% endhint %}

## How a guardrail evaluates a PR

```mermaid
flowchart LR
    A[PR opened or updated] --> B[Heeler evaluates the change<br/>with full context]
    B --> C{Guardrail<br/>matched?}
    C -->|No| P([✓ Check passes])
    C -->|Yes| D{Configured<br/>action}
    D -->|Observe| O([Recorded only])
    D -->|Warn| W([⚠ Warning · merge allowed])
    D -->|Block| BL([✗ Check fails · merge blocked])
    BL --> X[Fix w/ Heeler, or push a fix] --> B
```

## The three actions

Every guardrail takes one of three actions when it matches. They form a natural rollout path — start safe, tighten as you gain confidence.

| Action      | On the PR                              | Merge                    | Use it for                                  |
| ----------- | -------------------------------------- | ------------------------ | ------------------------------------------- |
| **Observe** | Silently recorded for visibility       | ✅ Allowed                | Measuring impact before you enforce         |
| **Warn**    | A warning is surfaced to the developer | ✅ Allowed                | Policies you want visible, not yet blocking |
| **Block**   | The status check fails                 | ⛔ Blocked until resolved | Policies you're ready to enforce            |

{% hint style="success" %}
**Roll out Observe → Warn → Block.** Start a new guardrail in **Observe** and watch the **Pull Requests** and **Violations** tabs. When the volume looks right, promote it to **Warn**, then **Block**.
{% endhint %}

{% hint style="warning" %}
**Block needs enforcement on the SCM side.** Heeler reports a failed status check, but your source control decides whether that check actually prevents a merge. For Block to hold, turn on the matching setting in your platform:

* **GitHub** — [branch protection rules](https://docs.github.com/en/repositories/configuring-branches-and-merges-in-your-repository/managing-protected-branches/managing-a-branch-protection-rule)
* **GitLab** — [external status checks](https://docs.gitlab.com/user/project/merge_requests/status_checks/#block-merges-of-merge-requests-unless-all-status-checks-have-passed)
* **Bitbucket** — [branch restrictions](https://support.atlassian.com/bitbucket-cloud/docs/pull-request-and-merge-settings/)
  {% endhint %}

## What a guardrail can enforce

Heeler enforces twelve kinds of check. Dependency Vulnerability and Dependency Hygiene share the `Dependency` entity and can be combined in one guardrail; every other check is dedicated (see [Guardrail Types](/mrecEO40m5D6bt7Pq5pE/prevent/pr-guardrails/guardrail-types.md)).

| Guardrail                      | What it checks                                                                                 | Evaluated against                                                | Combine?                |
| ------------------------------ | ---------------------------------------------------------------------------------------------- | ---------------------------------------------------------------- | ----------------------- |
| **Dependency Vulnerabilities** | Known-vulnerable dependencies the PR adds or changes                                           | Dependencies the PR introduces/modifies (re-checked each commit) | ✅ with Dependency rules |
| **Dependency Hygiene**         | Supply-chain & maintenance quality                                                             | Dependencies the PR introduces/modifies                          | ✅ with Dependency rules |
| **Source Code (SAST)**         | New code-security findings the branch adds                                                     | Branch vs. default-branch baseline; once per repo                | ⛔ dedicated             |
| **IaC Misconfigurations**      | Infrastructure misconfigurations the branch adds                                               | Branch vs. default-branch baseline; once per repo                | ⛔ dedicated             |
| **Malicious Files (IOC)**      | Known-malicious files the branch adds — exfiltration scripts, web shells, persistence implants | Branch vs. default-branch baseline; once per repo                | ⛔ dedicated             |
| **Secret Scanning**            | Secrets committed anywhere in the PR history                                                   | Every commit in the PR window                                    | ⛔ dedicated             |
| **Repository Secrets**         | Secrets anywhere in the repository's secret inventory, including git history                   | Entire repository state                                          | ⛔ dedicated             |
| **SLO Violations**             | Remediation overdue against your SLOs                                                          | Entire repository state                                          | ⛔ dedicated             |
| **Agent File Static Findings** | New static findings on agent files the PR touches                                              | Agent files the PR introduces/modifies; once per repo            | ⛔ dedicated             |
| **Agent File Change**          | The fact that an agent file was introduced or modified                                         | Agent files the PR introduces/modifies; once per repo            | ⛔ dedicated             |
| **Agent File LLM Risk Rating** | The risk rating a review gives an agent file the PR changes                                    | Agent files the PR introduces/modifies; once per repo            | ⛔ dedicated             |
| **Agent File LLM Findings**    | New reviewed risk findings on a changed agent file                                             | Agent files the PR introduces/modifies; once per repo            | ⛔ dedicated             |

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-b3fdd7a5f67dcc0623530e2d0095cca10c81a5f7%2Fguardrails-list.png?alt=media" alt="The Guardrails list with its Guardrails, Pull Requests, and Violations tabs."><figcaption><p>The Guardrails area — each row is a policy, with its live success rate, violations, and action.</p></figcaption></figure>

{% hint style="info" %}
**Rules within one guardrail are ANDed** — a dependency must match *every* rule for the guardrail to fire. To get **OR** behavior (fire when *any* rule matches), create a separate guardrail per rule. OR-within-a-single-guardrail is on the roadmap.
{% endhint %}

## Scope: where each guardrail applies

Guardrails are scoped, and scopes combine on a single guardrail for precise targeting — for example, *Block* on production, internet-accessible services and *Warn* everywhere else.

{% columns %}
{% column %}

* **All Repositories (Global)** — every repo and service (the default).
* **Repository** — by name, source, or org/group.
  {% endcolumn %}

{% column %}

* **Service Runtime Context** — by tier, application, or internet accessibility.
* **Branch** — by branch type (all / default only / all except main).
  {% endcolumn %}
  {% endcolumns %}

## Execution results

Each time a guardrail evaluates a pull request it records an **execution** with one of four results. A guardrail with rules on several code modules records one execution per module.

| Result            | What it means                                                                                                                        |
| ----------------- | ------------------------------------------------------------------------------------------------------------------------------------ |
| **Pass**          | The guardrail evaluated the change and nothing matched.                                                                              |
| **Fail**          | The guardrail evaluated the change and its rules matched, raising a violation. Under **Block**, this is what fails the status check. |
| **Error**         | The evaluation broke. No violation is raised.                                                                                        |
| **Not Evaluated** | The input the guardrail needed never arrived, so it reached no verdict.                                                              |

**Error** and **Not Evaluated** are different states: Error means the evaluation broke, Not Evaluated means the input never arrived. Neither fails the status check, and both are recorded against the pull request. A **Not Evaluated** execution also carries the reason — see [when the pull-request scan does not run](/mrecEO40m5D6bt7Pq5pE/prevent/pr-guardrails/guardrail-types/secrets-guardrails.md#when-the-pull-request-scan-does-not-run).

A check run rolls its executions up **worst-first**: **Error**, then **Fail**, then **Not Evaluated**, then **Pass**. One leg without a verdict is therefore not reported as a clean run.

## Monitoring guardrails

Three tabs at the top of the **Guardrails** area answer three different questions — *which policies exist*, *what happened on each PR*, and *every individual rule hit*.

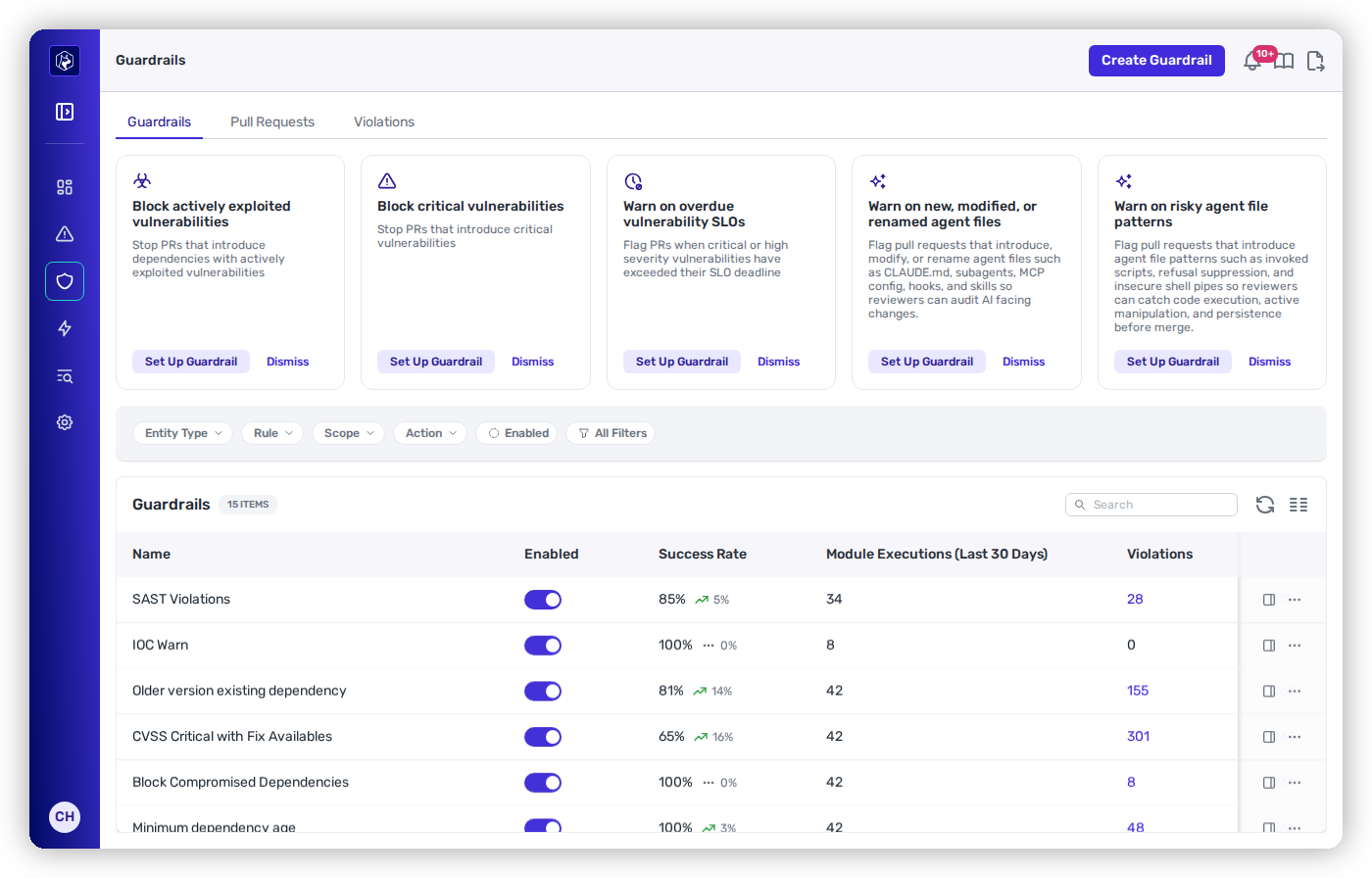

### Guardrails tab

Every guardrail you have configured, one row per policy.

| Column                               | What it shows                                                            |
| ------------------------------------ | ------------------------------------------------------------------------ |
| **Name**                             | The guardrail's name.                                                    |
| **Enabled**                          | A toggle. Off means the guardrail stays configured but is not evaluated. |
| **Success Rate**                     | The share of recent executions that passed, with the change beside it.   |
| **Module Executions (Last 30 Days)** | How many code modules it ran against in the last 30 days.                |
| **Violations**                       | How many violations it has raised.                                       |
| **Pull Requests**                    | How many pull requests it has evaluated.                                 |
| **Action**                           | Its enforcement action — **Observe**, **Warn** or **Block**.             |
| **Last Active**                      | When it last evaluated a pull request.                                   |

Filter by **Entity Type**, **Rule**, **Scope**, **Action** or **Enabled**, and use **All Filters** for the rest. **Create Guardrail** is above the table.

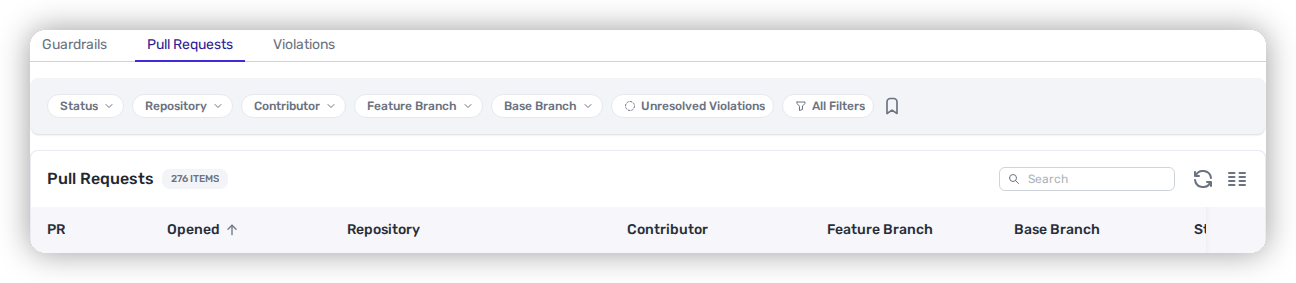

### Pull Requests tab

Every pull request Heeler has evaluated, one row per PR. It's how you watch impact while rolling a guardrail from Observe → Warn → Block.

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-b802f166d2bd6775e73bfd70bf286c54e1bc6dea%2Fcc-gr-pr-tab.png?alt=media" alt="The Pull Requests tab with its Status, Repository, Contributor, and branch filters."><figcaption><p>The Pull Requests tab — every evaluated PR, filterable by status, repository, contributor, and branch.</p></figcaption></figure>

| Column                                   | What it shows                                                                                                                                    |
| ---------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------ |
| **PR** / **Opened**                      | The pull request (linked to the SCM) and when it opened.                                                                                         |
| **Repository**                           | The repo the PR targets.                                                                                                                         |
| **Contributor**                          | Who authored the PR.                                                                                                                             |
| **Feature Branch** / **Base Branch**     | The source and target branches.                                                                                                                  |
| **Status**                               | The guardrail check outcome — **Passing**, **Passed with warnings** (a Warn-only guardrail matched but doesn't block the merge), or **Blocked**. |
| **Guardrails**                           | Which guardrails evaluated the PR.                                                                                                               |
| **Violations** / **Resolved Violations** | How many violations were found, and how many were resolved *within* the PR as later commits fixed them.                                          |

Filter by **Status**, **Repository**, **Contributor**, **Feature/Base Branch**, or **Unresolved Violations**. Open a PR to see its execution detail — which guardrails fired and the specific violations.

### Violations tab

Every individual violation across your environment, which surfaces **patterns** — one dependency tripping guardrails across many repositories — and allows them to be acted on together.

| Column                                  | What it shows                                                     |
| --------------------------------------- | ----------------------------------------------------------------- |
| **Executed At**                         | When the violation was recorded.                                  |
| **Guardrail** / **Action**              | The guardrail that fired and its action (Observe / Warn / Block). |
| **Violations**                          | What was violated (e.g. the offending dependency and version).    |
| **PR** / **Repository** / **Code Root** | Where it occurred.                                                |
| **Contributor**                         | Who authored the change.                                          |

A violation's status is **active**, **resolved**, or **merged unresolved** (the PR merged with the violation still open — the case to review).

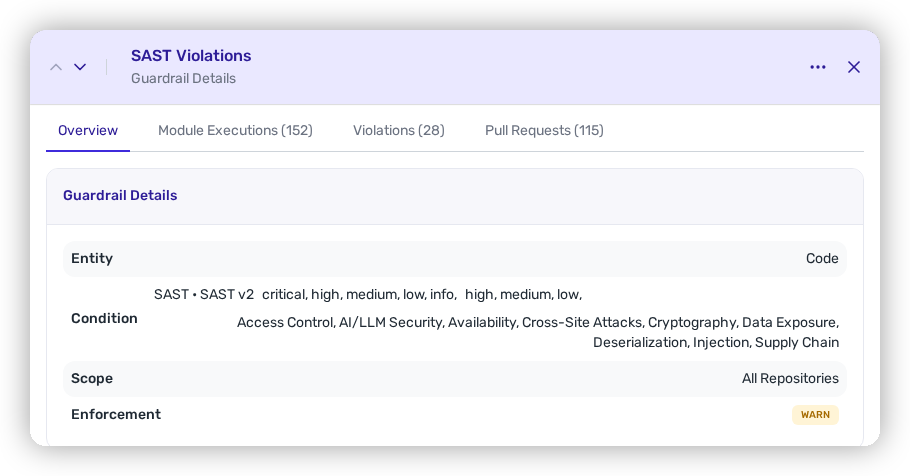

### The guardrail detail drawer

Click a guardrail (on the **Guardrails** tab) to open its detail drawer. Four sub-tabs break down everything about that one policy:

<figure><img src="https://414480750-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXP3dp2kecwKA2KvYkntz%2Fuploads%2Fgit-blob-f02d8fcbb23ef8f71f071f2c019c8360edcd87c4%2Fcc-gr-drawer.png?alt=media" alt="A guardrail&#x27;s detail drawer showing the Overview, Module Executions, Violations, and Pull Requests sub-tabs."><figcaption><p>The guardrail detail drawer — its definition plus every execution, violation, and PR it touched.</p></figcaption></figure>

* **Overview** — the guardrail's definition: **Entity**, **Condition** (its rules), **Scope**, and **Enforcement** action.
* **Module Executions** — every code module the guardrail ran against, with counts.
* **Violations** — the violations this specific guardrail has raised.
* **Pull Requests** — the PRs this guardrail has evaluated.

{% hint style="info" %}
For a repository-scoped view of guardrail activity, open **Catalog → the repository → a module → Guardrail Executions** — the per-module execution history for everything that ran against that code.
{% endhint %}

## Supported source control

Guardrails run as native PR/MR status checks on **GitHub**, **GitLab**, **Bitbucket**, and **Azure DevOps**. The check you'll look for in the PR's checks list is named as follows, and it reports a passing (`Guardrail Scan Passed`) or failing (`Guardrail Violation`) result with a link to `app.heeler.com/guardrails/violations`:

{% tabs %}
{% tab title="GitHub" %}
The check is named **Heeler**. Status checks on the PR, with an inline **Fix w/Heeler** action (or one-click **Apply suggestion**) when an auto-fix is available.
{% endtab %}

{% tab title="GitLab" %}
The external status check is named **Heeler Security Guardrail Scan**. Merge-request status checks; an available auto-fix is committed directly to the branch.
{% endtab %}

{% tab title="Bitbucket" %}
The build status is named **Heeler Security Guardrail Scan** (key `heeler-guardrails`). Native PR status checks; an available auto-fix is committed directly to the branch.
{% endtab %}

{% tab title="Azure DevOps" %}
The status is named **Heeler Security Guardrail Scan**. Native PR status checks.
{% endtab %}
{% endtabs %}
